A heat exchanger is required to cool 20 kg/s of water from 360 K to 340 K by means of 25 kg/s water entering at 300 K. i

[answerhappygod]

A Heat Exchanger Is Required To Cool 20 Kg S Of Water From 360 K To 340 K By Means Of 25 Kg S Water Entering At 300 K I 1 (61.8 KiB) Viewed 34 times

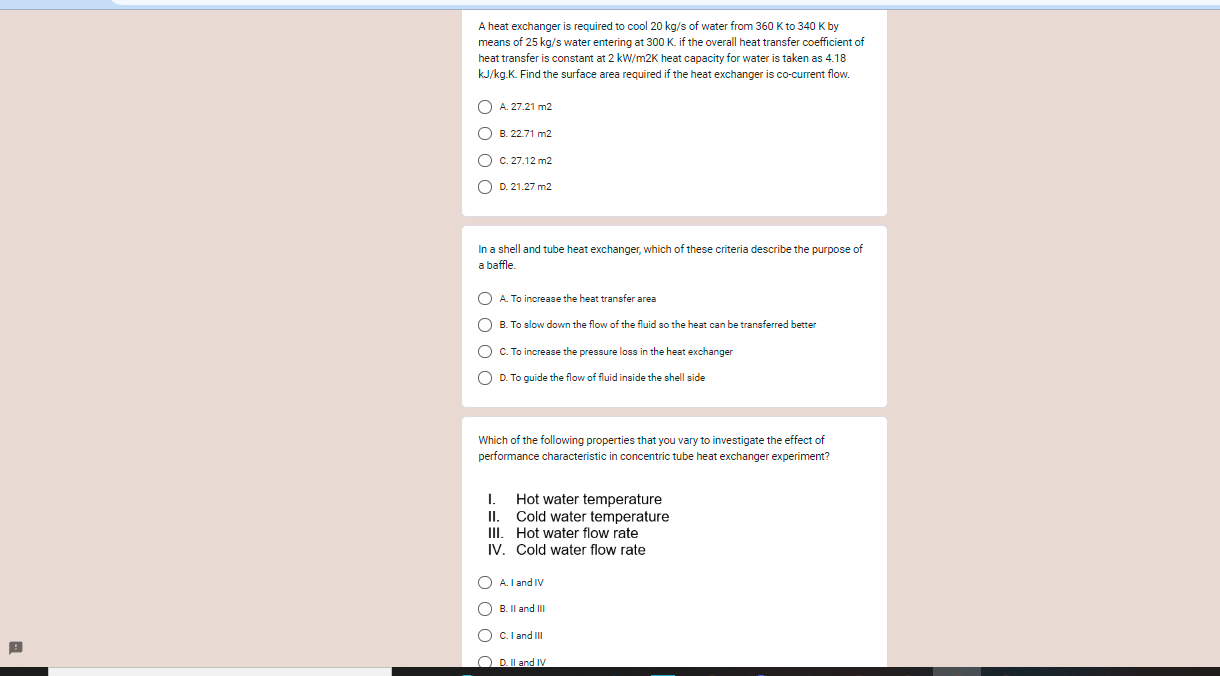

A heat exchanger is required to cool 20 kg/s of water from 360 K to 340 K by means of 25 kg/s water entering at 300 K. if the overall heat transfer coefficient of heat transfer is constant at 2 kW/m2 K heat capacity for water is taken as 4.18 kJ/kg.K. Find the surface area required if the heat exchanger is co-current flow. A. 27.21 m2 B. 22.71 m2 C. 27.12 m2 D. 21.27 m2 In a shell and tube heat exchanger, which of these criteria describe the purpose of a baffle. A. To increase the heat transfer area B. To slow down the flow of the fluid so the heat can be transferred better C. To increase the pressure loss in the heat exchanger D. To guide the flow of fluid inside the shell side Which of the following properties that you vary to investigate the effect of performance characteristic in concentric tube heat exchanger experiment? I. Hot water temperature II. Cold water temperature III. Hot water flow rate IV. Cold water flow rate A. I and IV B. II and III C. I and III D. II and IV
