Question 3. (TOTAL 25 MARKS) Axial loads due to permanent load Figure 3 A timber frame is made up of studs that are 3 m

Post by answerhappygod »

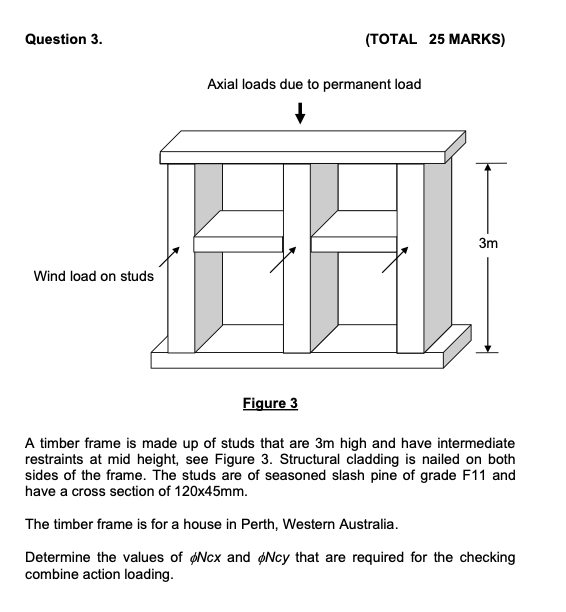

Question 3 Total 25 Marks Axial Loads Due To Permanent Load Figure 3 A Timber Frame Is Made Up Of Studs That Are 3 M 1
Question 3 Total 25 Marks Axial Loads Due To Permanent Load Figure 3 A Timber Frame Is Made Up Of Studs That Are 3 M 1 (43.14 KiB) Viewed 35 times
Question 3. (TOTAL 25 MARKS) Axial loads due to permanent load Figure 3 A timber frame is made up of studs that are 3 m high and have intermediate restraints at mid height, see Figure 3 . Structural cladding is nailed on both sides of the frame. The studs are of seasoned slash pine of grade F11 and have a cross section of 120×45 mm. The timber frame is for a house in Perth, Western Australia. Determine the values of ϕNcx and ϕNcy that are required for the checking combine action loading.
