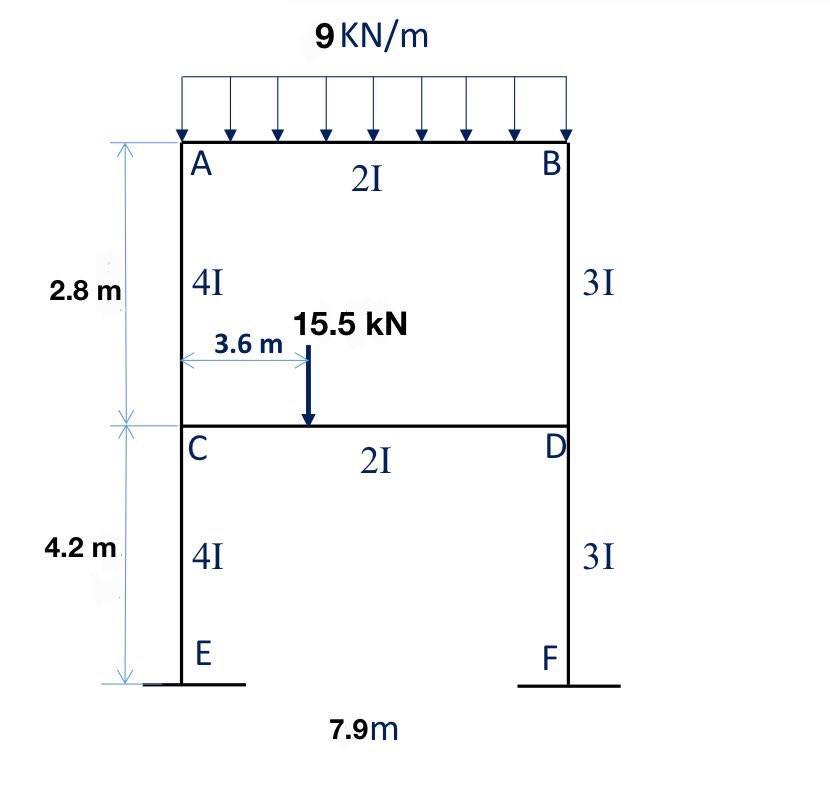

The indeterminate frame below is loaded with gravity loads asshown. Using MOMENT DISTRIBUTION METHOD ONLY,compute for the internal moments and moment reaction occurring onthe structure due to the applied loads. Show your complete solutionfrom the computation of distribution factor, fixed end moments,balancing, unbalanced moments and total joint moment for eachmember. Neglect effects of side-sway in the calculation.
- Relative Stiffness of member BD.kBD
- Distribution Factor at joint A of girder AB.DFAB
- Fixed-end moment at joint D of girder DC in kN-m.FEMDC
- Moment at joint E of column EC in kN-m.MEC
- Moment at joint C of girder CD in kN-m.MCD
- Please Refer To The Given Values In The Figure And Answer Accurately All The Questions Below Wrong Answer Will Be Given 1 (30.5 KiB) Viewed 29 times
