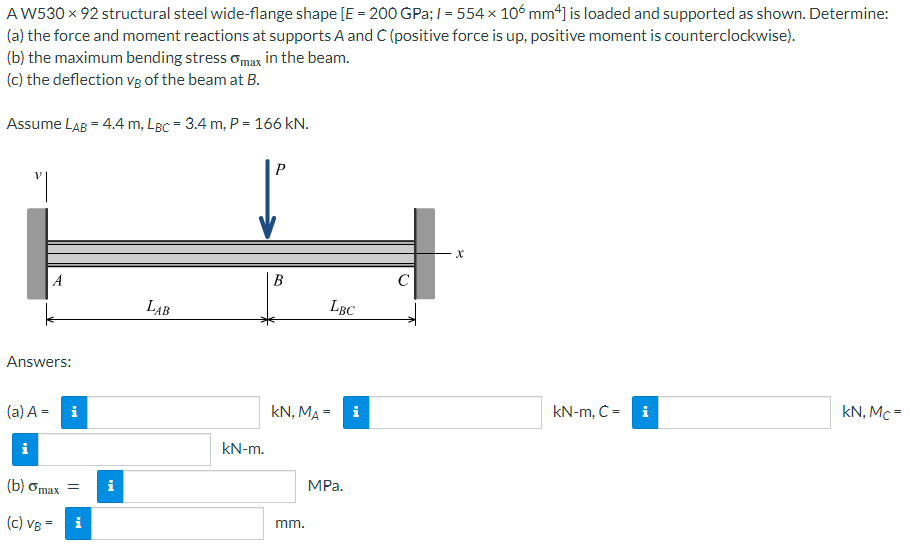

A W530 ×92 structural steel wide-flange shape [E=200GPa;I=554×106 mm4] is loaded and supported as shown. Determine: (a) the force and moment reactions at supports A and C (positive force is up, positive moment is counterclockwise). (b) the maximum bending stress σmax in the beam. (c) the deflection vB of the beam at B. Assume LAB=4.4 m,LBC=3.4 m,P=166kN. Answers: (a) A= kN,MA= kN−m,C= kN,MC= kN-m. (b) σmax= MPa. (c) vB= mm.
