\begin{tabular}{l|l} The composite shaft below is made of a solid A-36 steel core and a brass & 17 \\ sheathing Calculat

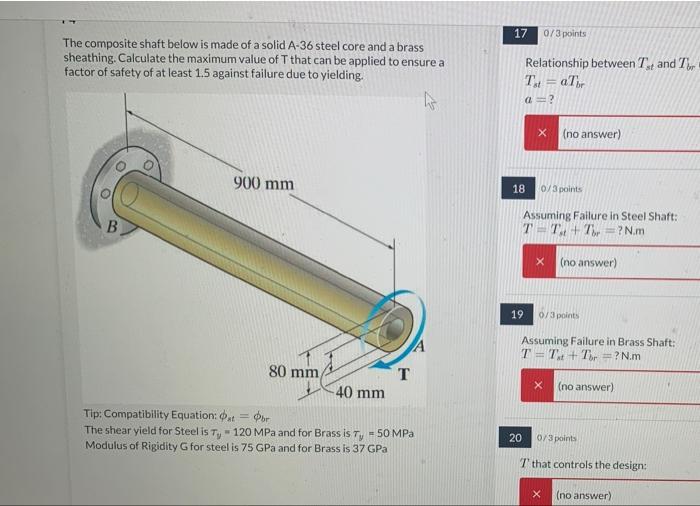

\begin{tabular}{l|l} The composite shaft below is made of a solid A-36 steel core and a brass & 17 \\ sheathing Calculate the maximum value of T that can be applied to ensure a \end{tabular} Relationship between Tst and Ti sheathing. Calculate the maximum value of T that can be applied Tst=aTbr a=? 18 0/3 points Assuming Fallure in Steel Shaft: T=Tst+Tbr=? N⋅m 19 O/3 points Assuming Failure in Brass Shaft: T=Tst +Tbr=? N⋅m Tip: Compatibility Equation: ϕst=ϕbr The shear yield for Steel is Ty=120MPa and for Brass is τy=50MPa 20 o/3points Modulus of Rigidity G for steel is 75GPa and for Brass is 37GPa T that controls the design:
