A W530 ×92 structural steel wide-flange shape [E=200GPa;1=554×106 mm4] is loaded and supported as shown. Determine: (a)

Post by answerhappygod »

A W530 92 Structural Steel Wide Flange Shape E 200gpa 1 554 106 Mm4 Is Loaded And Supported As Shown Determine A 1
A W530 92 Structural Steel Wide Flange Shape E 200gpa 1 554 106 Mm4 Is Loaded And Supported As Shown Determine A 1 (23.64 KiB) Viewed 35 times

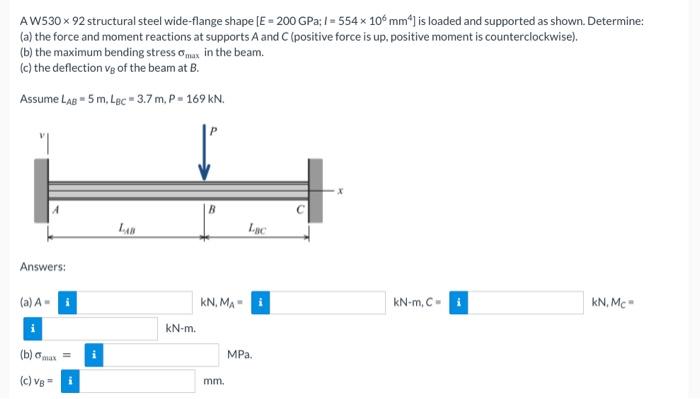

A W530 ×92 structural steel wide-flange shape [E=200GPa;1=554×106 mm4] is loaded and supported as shown. Determine: (a) the force and moment reactions at supports A and C (positive force is up, positive moment is counterclockwise). (b) the maximum bending stress σmax​ in the beam. (c) the deflection vB​ of the beam at B. Assume LAB​=5 m,LBC​=3.7 m,P=169kN Answers:
