b) The column shown in Fig. 1 (b) has overall height of 32 feet and is braced about the x−x axis at a distance of 20 fee

Post by answerhappygod »

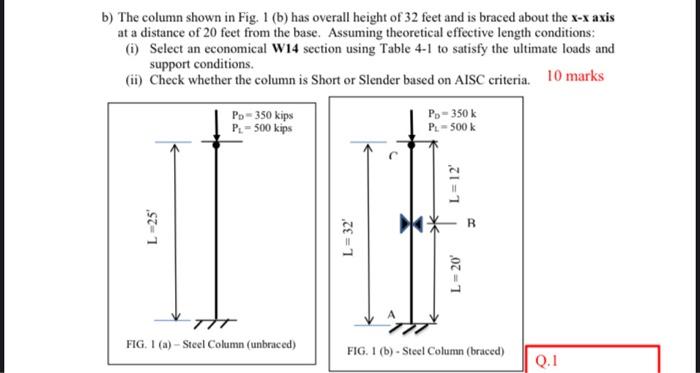

B The Column Shown In Fig 1 B Has Overall Height Of 32 Feet And Is Braced About The X X Axis At A Distance Of 20 Fee 1
B The Column Shown In Fig 1 B Has Overall Height Of 32 Feet And Is Braced About The X X Axis At A Distance Of 20 Fee 1 (29.91 KiB) Viewed 37 times
b) The column shown in Fig. 1 (b) has overall height of 32 feet and is braced about the x−x axis at a distance of 20 feet from the base. Assuming theoretical effective length conditions: (i) Select an economical W14 section using Table 4-1 to satisfy the ultimate loads and support conditions. (ii) Check whether the column is Short or Slender based on AISC criteria. 10 marks
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
