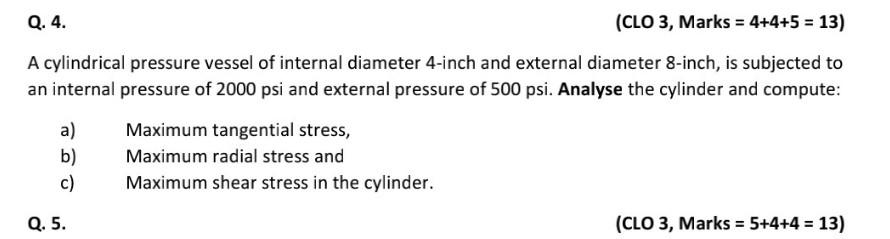

Q. 4. (CLO 3, Marks = 4+4+5=13) A cylindrical pressure vessel of internal diameter 4 -inch and external diameter 8 -inch, is subjected to an internal pressure of 2000 psi and external pressure of 500 psi. Analyse the cylinder and compute: a) Maximum tangential stress, b) Maximum radial stress and c) Maximum shear stress in the cylinder. Q. 5. (CLO 3, Marks =5+4+4=13)
