a) A simply supported beam carrying plaster is to span 5 m and support uniformly distributed characteristic dead and imp

Post by answerhappygod »

A A Simply Supported Beam Carrying Plaster Is To Span 5 M And Support Uniformly Distributed Characteristic Dead And Imp 1
A A Simply Supported Beam Carrying Plaster Is To Span 5 M And Support Uniformly Distributed Characteristic Dead And Imp 1 (95.88 KiB) Viewed 34 times

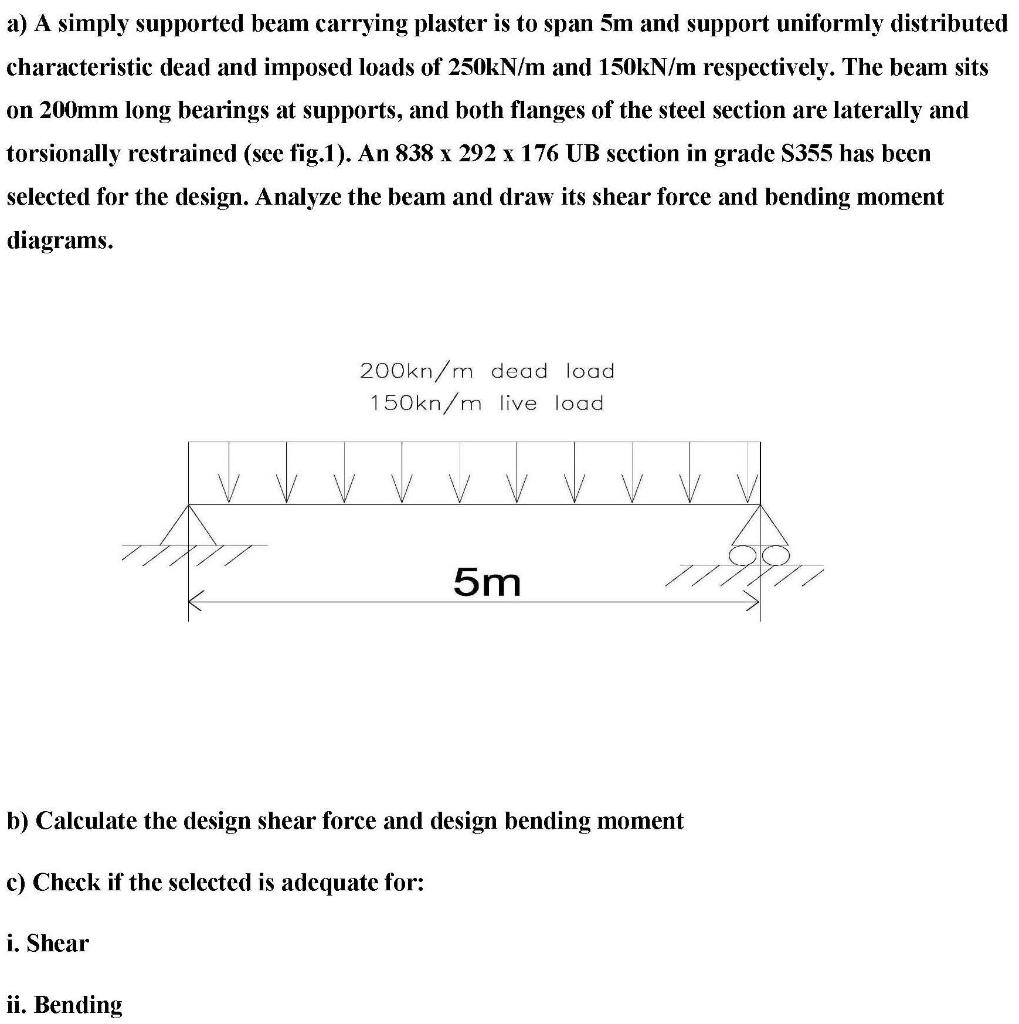

a) A simply supported beam carrying plaster is to span 5 m and support uniformly distributed characteristic dead and imposed loads of 250kN/m and 150kN/m respectively. The beam sits on 200 mm long bearings at supports, and both flanges of the steel section are laterally and torsionally restrained (see fig.1). An 838×292×176UB section in grade S355 has been selected for the design. Analyze the beam and draw its shear force and bending moment diagrams. b) Calculate the design shear force and design bending moment c) Check if the selected is adequate for: i. Shear ii. Bending
