Q1: A rod is composed of a bronze section rigidly attached between steel and aluminum sections, as shown in the figure b

Post by answerhappygod »

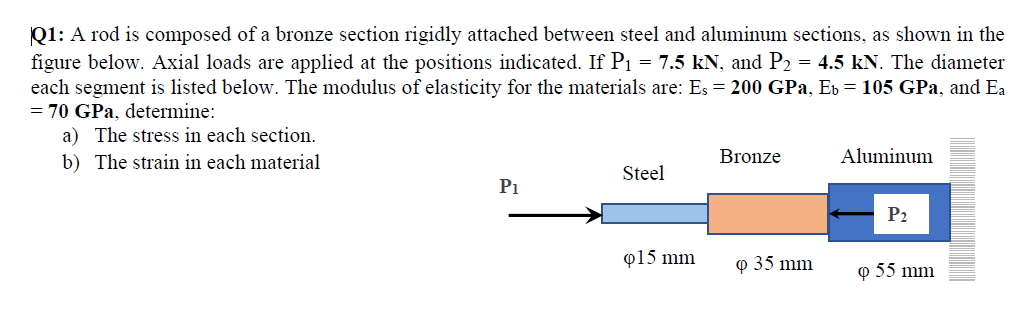

Q1 A Rod Is Composed Of A Bronze Section Rigidly Attached Between Steel And Aluminum Sections As Shown In The Figure B 1
Q1 A Rod Is Composed Of A Bronze Section Rigidly Attached Between Steel And Aluminum Sections As Shown In The Figure B 1 (32.62 KiB) Viewed 47 times
Q1: A rod is composed of a bronze section rigidly attached between steel and aluminum sections, as shown in the figure below. Axial loads are applied at the positions indicated. If P1​=7.5kN, and P2​=4.5kN. The diameter each segment is listed below. The modulus of elasticity for the materials are: Es​=200GPa,Eb​=105GPa, and Ea​ =70GPa, determine: a) The stress in each section. b) The strain in each material
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
