Two horizontal 5-kip forces are applied to pin B of the assembly shown. Knowing that a pin of 0.8-in. diameter is used a

Post by answerhappygod »

Two Horizontal 5 Kip Forces Are Applied To Pin B Of The Assembly Shown Knowing That A Pin Of 0 8 In Diameter Is Used A 1
Two Horizontal 5 Kip Forces Are Applied To Pin B Of The Assembly Shown Knowing That A Pin Of 0 8 In Diameter Is Used A 1 (360.83 KiB) Viewed 48 times

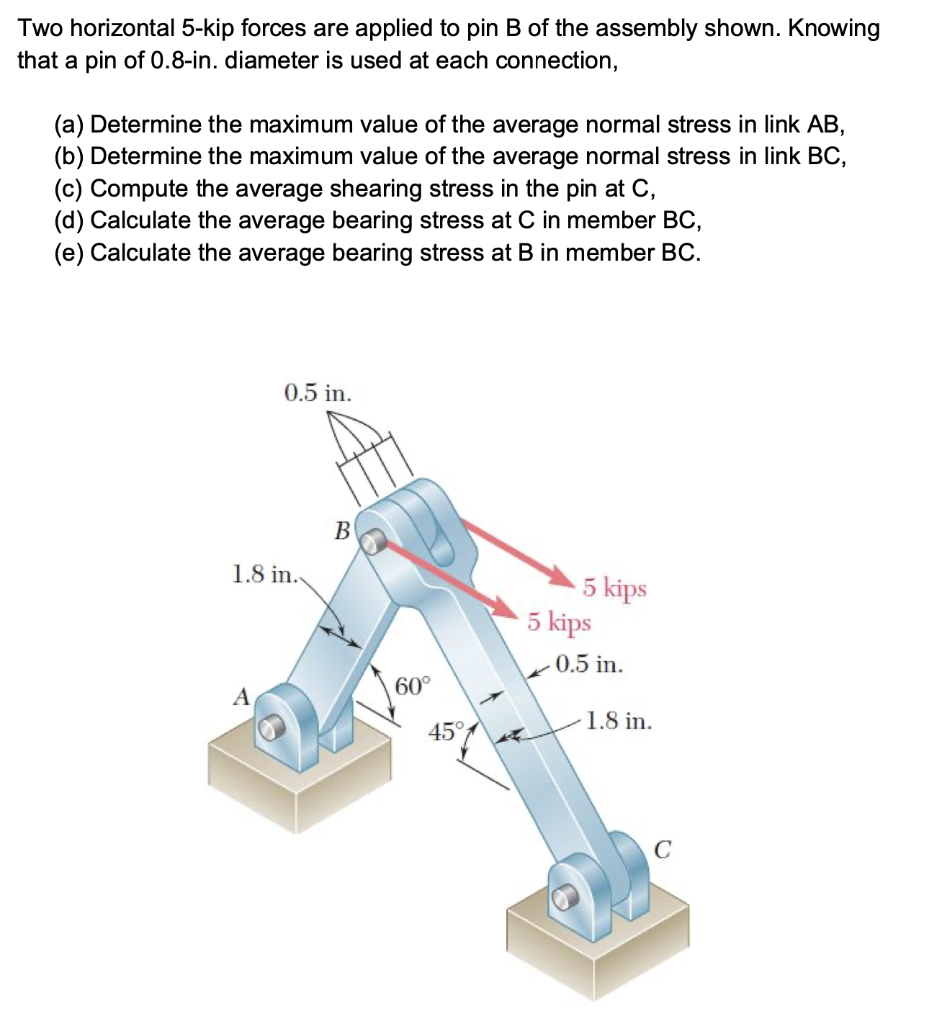

Two horizontal 5-kip forces are applied to pin B of the assembly shown. Knowing that a pin of 0.8-in. diameter is used at each connection, (a) Determine the maximum value of the average normal stress in link AB, (b) Determine the maximum value of the average normal stress in link BC, (c) Compute the average shearing stress in the pin at C, (d) Calculate the average bearing stress at C in member BC, (e) Calculate the average bearing stress at B in member BC.
