Angle Section in tension (a) A single angle section is used as a tension member in a roof truss. It is connected to guss

Post by answerhappygod »

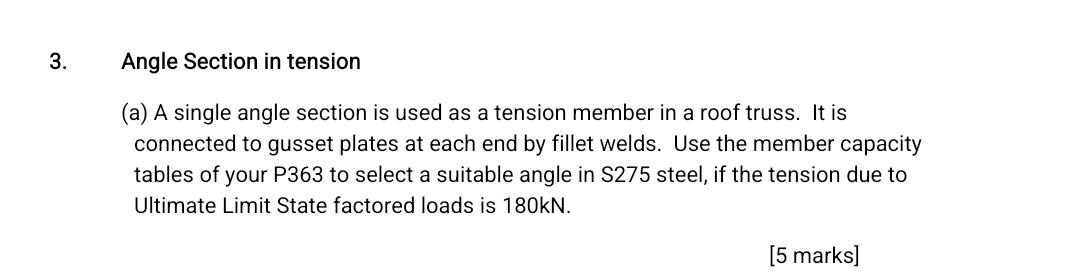

Angle Section In Tension A A Single Angle Section Is Used As A Tension Member In A Roof Truss It Is Connected To Guss 1
Angle Section In Tension A A Single Angle Section Is Used As A Tension Member In A Roof Truss It Is Connected To Guss 1 (32.14 KiB) Viewed 40 times
Angle Section in tension (a) A single angle section is used as a tension member in a roof truss. It is connected to gusset plates at each end by fillet welds. Use the member capacity tables of your P363 to select a suitable angle in S275 steel, if the tension due to Ultimate Limit State factored loads is 180kN.
