Q.2) An air-conditioner unit is supported by a beam hanging from two circular bars as shown below. The weight of the air

Post by answerhappygod »

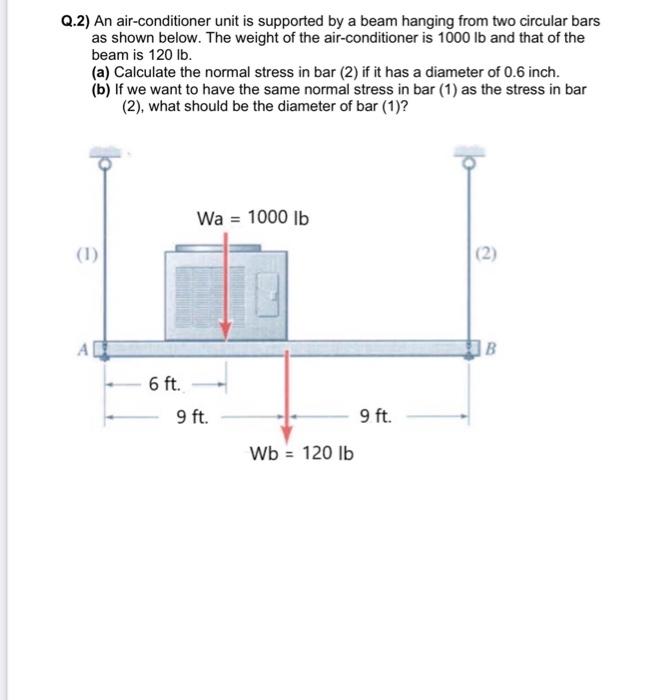

Q 2 An Air Conditioner Unit Is Supported By A Beam Hanging From Two Circular Bars As Shown Below The Weight Of The Air 1
Q 2 An Air Conditioner Unit Is Supported By A Beam Hanging From Two Circular Bars As Shown Below The Weight Of The Air 1 (33.03 KiB) Viewed 38 times
Q.2) An air-conditioner unit is supported by a beam hanging from two circular bars as shown below. The weight of the air-conditioner is 1000lb and that of the beam is 120lb. (a) Calculate the normal stress in bar (2) if it has a diameter of 0.6 inch. (b) If we want to have the same normal stress in bar (1) as the stress in bar (2), what should be the diameter of bar (1)?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
