A concrete beam is simply-supported over an effective span of 5.0 in as shown it Figure 6.56. Using the data given (1) v

Post by answerhappygod »

A Concrete Beam Is Simply Supported Over An Effective Span Of 5 0 In As Shown It Figure 6 56 Using The Data Given 1 V 1
A Concrete Beam Is Simply Supported Over An Effective Span Of 5 0 In As Shown It Figure 6 56 Using The Data Given 1 V 1 (26.03 KiB) Viewed 35 times

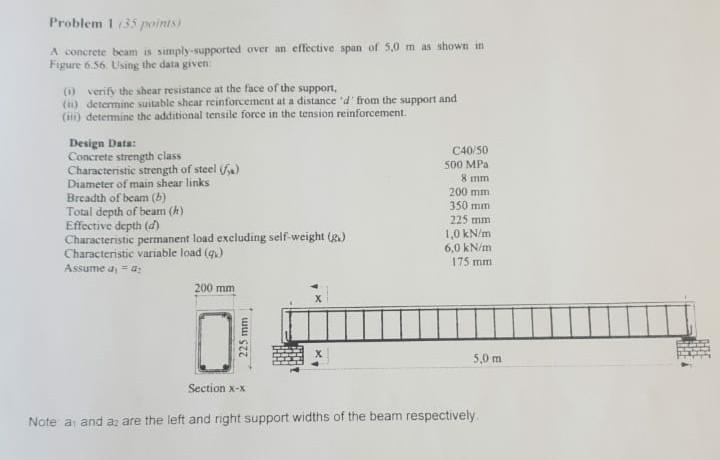

A concrete beam is simply-supported over an effective span of 5.0 in as shown it Figure 6.56. Using the data given (1) verify the shear resistance at the face of the support, (ii) determine suitable shear reinforcement at a distance ' d ' from the support and (iii) determine the additional tensile force in the tension reinforeement. section x−x Note ai and as are the left and right support widths of the beam respectively.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
