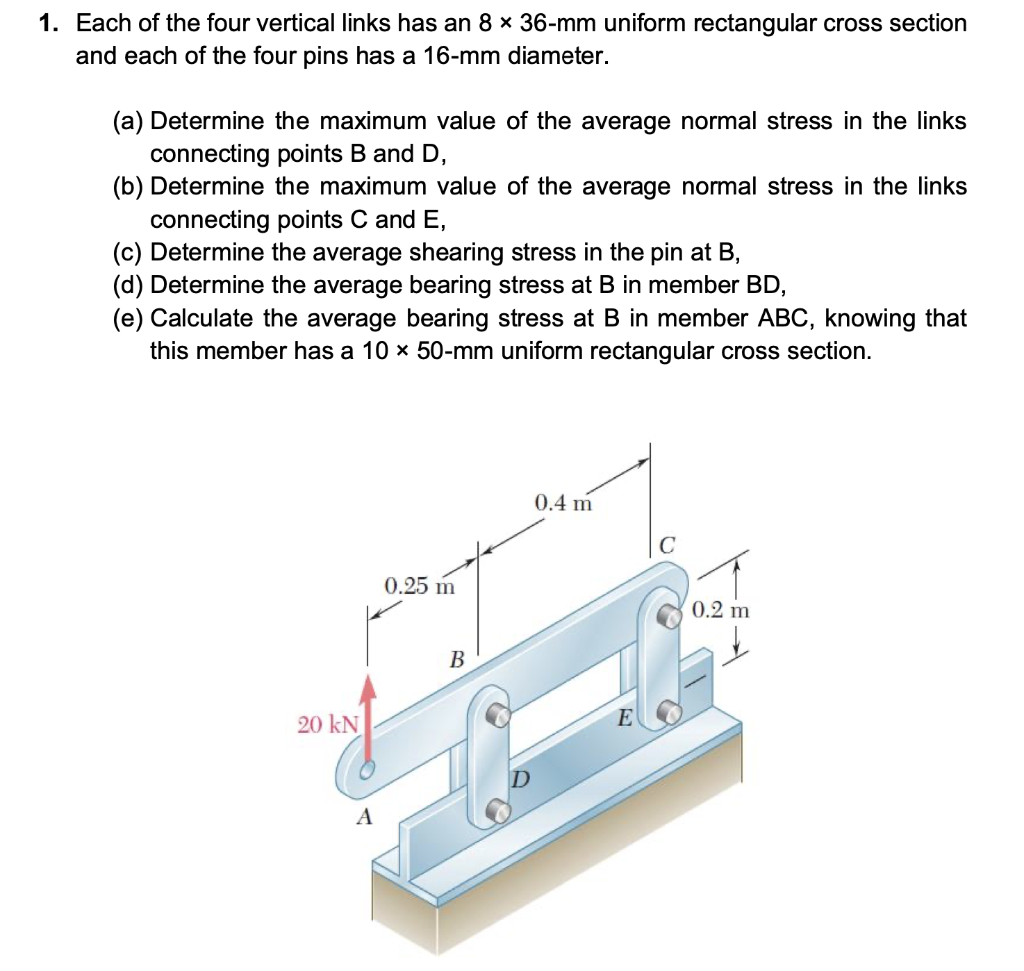

Each of the four vertical links has an 8×36−mm uniform rectangular cross section and each of the four pins has a 16−mm diameter. (a) Determine the maximum value of the average normal stress in the links connecting points B and D, (b) Determine the maximum value of the average normal stress in the links connecting points C and E, (c) Determine the average shearing stress in the pin at B, (d) Determine the average bearing stress at B in member BD, (e) Calculate the average bearing stress at B in member ABC, knowing that this member has a 10×50−mm uniform rectangular cross section.
