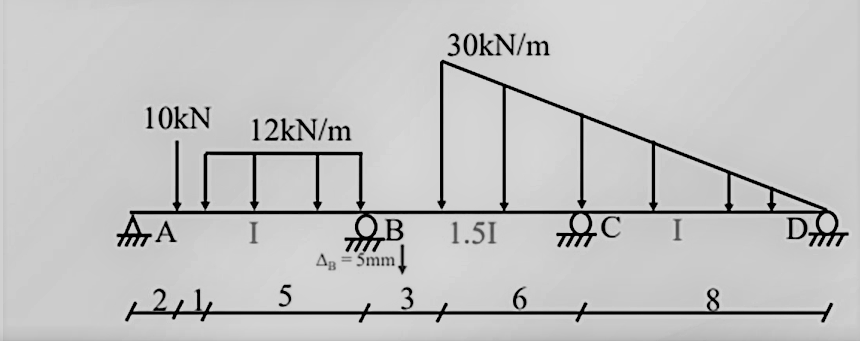

determine the support reactions (A,B,C,D) and the end moments ofthe beam shown. Use the Slope Deflection Method. E=200GPa,I=250x10^6. Distance are in meters. Show complete solutions. Thereis a support settlement of 5mm downward at B.
Determine The Support Reactions A B C D And The End Moments Of The Beam Shown Use The Slope Deflection Method E 200g 1 (101.58 KiB) Viewed 38 times
QUESTIONS AND CHOICES ARE BELOW
What is the end moment MAB?
0
89.45
49.85
31.15
End moment MBA/MBC?
84.5
72.2
54.8
0
End moment MCB/MCD?
113.73
31.17
89.45
0
End moment MDC?
0
74.96
43.95
27.5
What is the support reaction at A?
15.69
102.49
8.65
153.19
Support reaction at B?
102.49
15.69
153.18
8.64
Support reaction at C?
153.18
15.69
102.49
8.64
Support reaction at D?
8.64
153.18
102.49
15.69
