- 4 For The Oystem Shown In The Figure A What Is The Flow Direction B What Kind Of Machine Is At A C Do You Think B 1 (22.29 KiB) Viewed 40 times
4. For the oystem shown in the figure, a) What is the flow direction? b) What kind of machine is at A? c) Do you think b
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. For the oystem shown in the figure, a) What is the flow direction? b) What kind of machine is at A? c) Do you think b

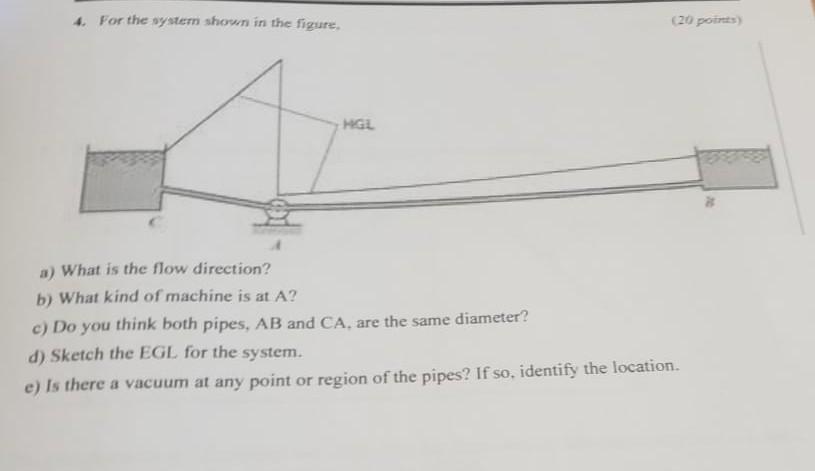

4. For the oystem shown in the figure, a) What is the flow direction? b) What kind of machine is at A? c) Do you think both pipes, AB and CA, are the same diameter? d) Sketch the EGL for the system. e) Is there a vacuum at any point or region of the pipes? If so, identify the location.
