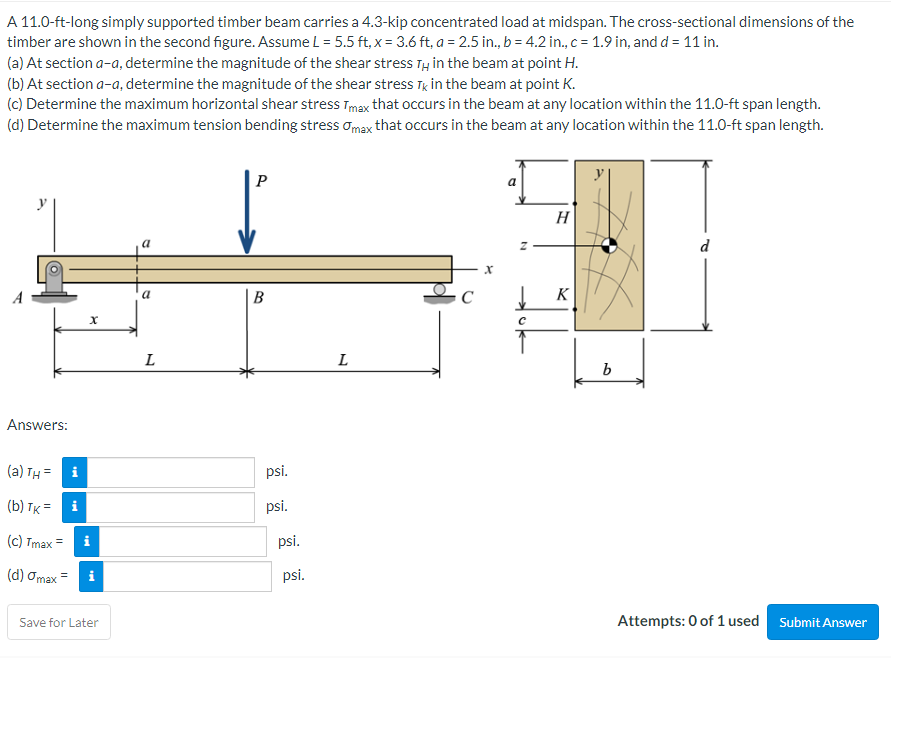

A 11.0-ft-long simply supported timber beam carries a 4.3-kip concentrated load at midspan. The cross-sectional dimensions of the timber are shown in the second figure. Assume L=5.5ft,x=3.6ft,a=2.5in.,b=4.2in.,c=1.9in, and d=11in. (a) At section a - a, determine the magnitude of the shear stress TH in the beam at point H. (b) At section a - a, determine the magnitude of the shear stress Ik in the beam at point K. (c) Determine the maximum horizontal shear stress Tmax that occurs in the beam at any location within the 11.0-ft span length. (d) Determine the maximum tension bending stress σmax that occurs in the beam at any location within the 11.0-ft span length. Answers: (a) TH= psi. (b) TK= psi. (c) Imax= psi. (d) σmax= psi. Attempts: 0 of 1 used
