Two vertical forces are applied to a simply supported beam, having the cross section shown. Assume LAB=LCD=1.6 m,LBC=

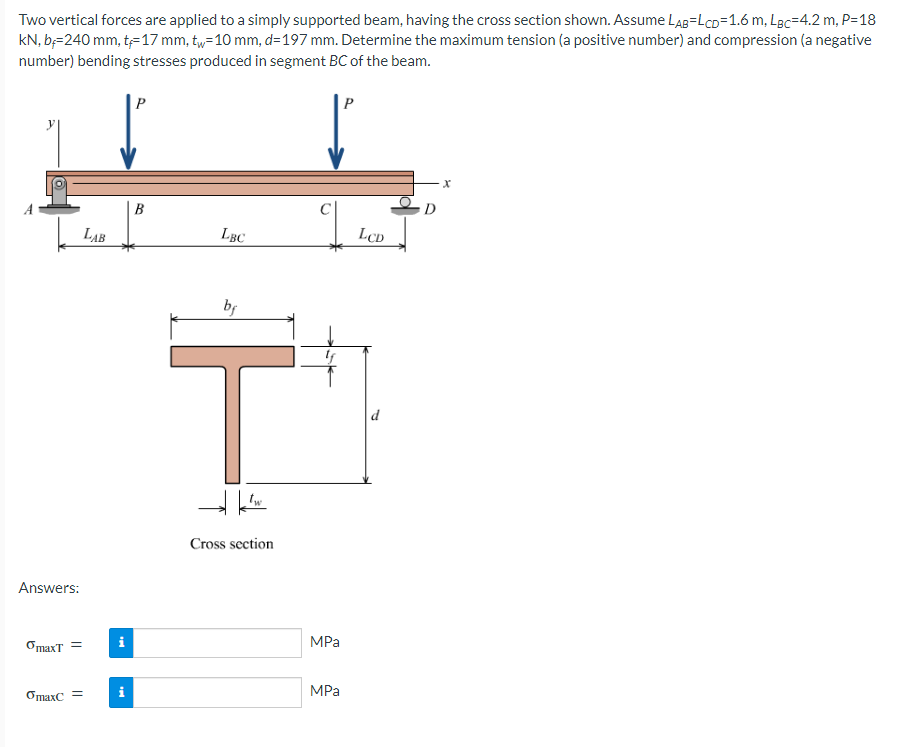

Two vertical forces are applied to a simply supported beam, having the cross section shown. Assume LAB=LCD=1.6 m,LBC=4.2 m,P=18 kN,bf=240 mm,tf=17 mm,tw=10 mm,d=197 mm. Determine the maximum tension (a positive number) and compression (a negative number) bending stresses produced in segment BC of the beam. Answers: σmaxT= MPa σmaxC= MPa
