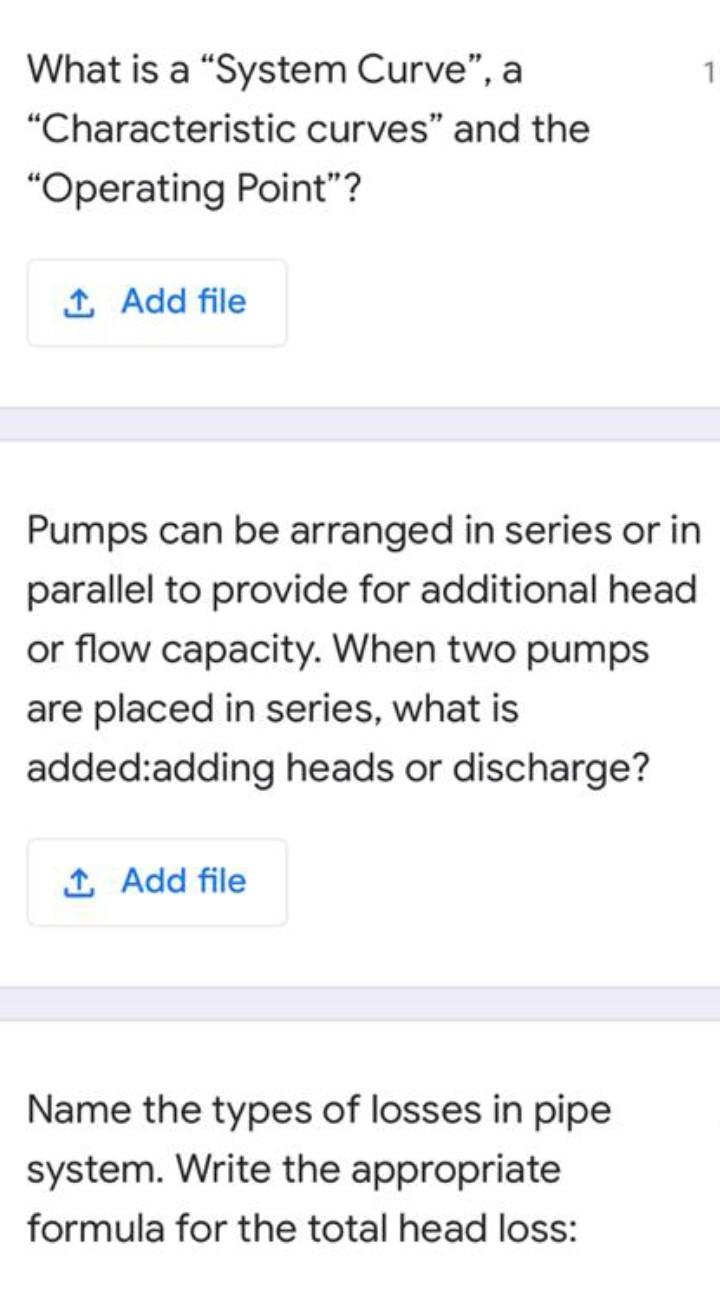

What is a "System Curve", a "Characteristic curves" and the "Operating Point"? Pumps can be arranged in series or in parallel to provide for additional head or flow capacity. When two pumps are placed in series, what is added:adding heads or discharge? Name the types of losses in pipe system. Write the appropriate formula for the total head loss:

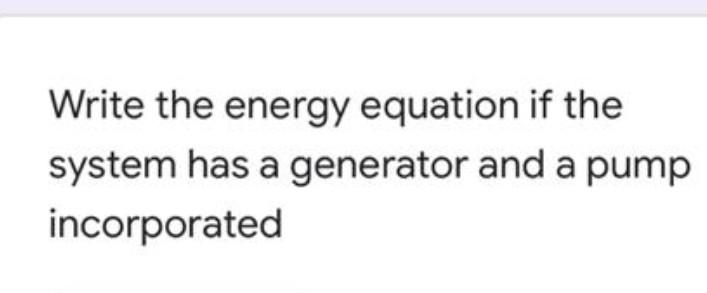

Write the energy equation if the system has a generator and a pump incorporated
