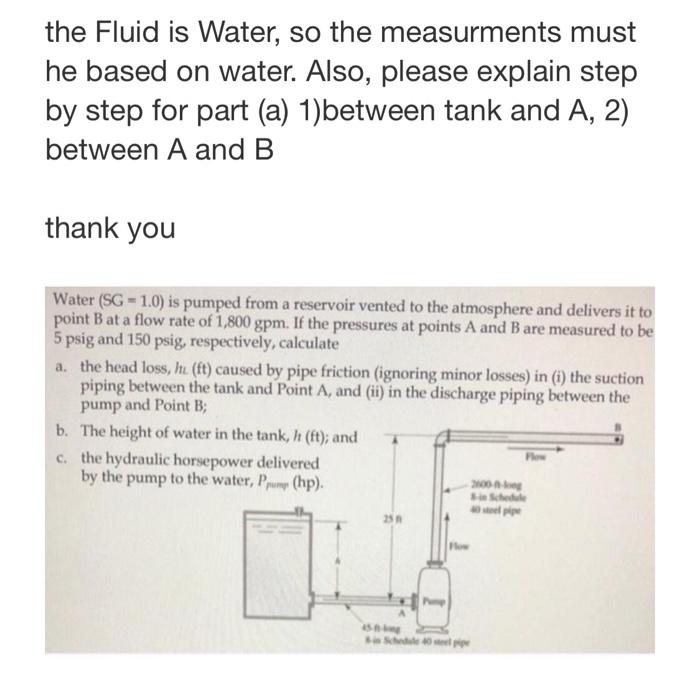

the Fluid is Water, so the measurments must he based on water. Also, please explain step by step for part (a) 1)between

[answerhappygod]

The Fluid Is Water So The Measurments Must He Based On Water Also Please Explain Step By Step For Part A 1 Between 1 (51.13 KiB) Viewed 40 times

the Fluid is Water, so the measurments must he based on water. Also, please explain step by step for part (a) 1)between tank and A, 2) between A and B thank you Water (SG=1.0) is pumped from a reservoir vented to the atmosphere and delivers it to point B at a flow rate of 1,800gpm. If the pressures at points A and B are measured to be 5 psig and 150 psig, respectively, calculate a. the head loss, ht. (ft) caused by pipe friction (ignoring minor losses) in (i) the suction piping between the tank and Point A, and (ii) in the discharge piping between the pump and Point B;
