Determine the support reactions using Method of Consistent Deformation. Then, draw the shear and bending moment diagram.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Determine the support reactions using Method of Consistent Deformation. Then, draw the shear and bending moment diagram.

Post by answerhappygod »

Determine the support reactions using Method of
Consistent Deformation. Then, draw the shear and bending
moment diagram. Please solve properly.
Determine The Support Reactions Using Method Of Consistent Deformation Then Draw The Shear And Bending Moment Diagram 1
Determine The Support Reactions Using Method Of Consistent Deformation Then Draw The Shear And Bending Moment Diagram 1 (27.04 KiB) Viewed 28 times

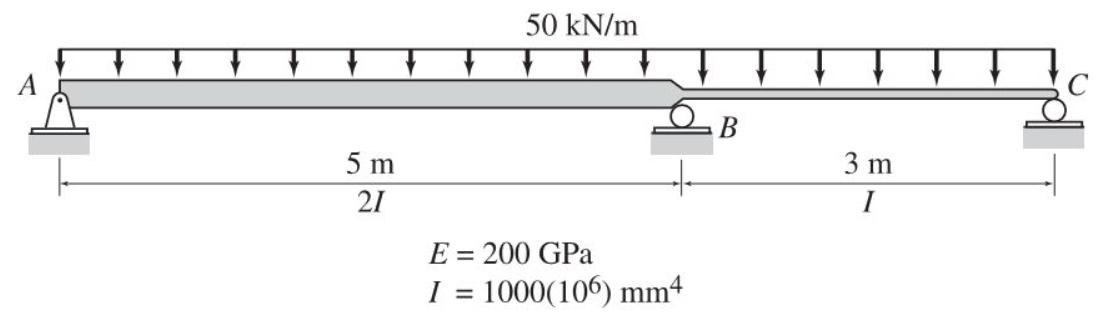

50 kN/m A C 6 B 5 m 3 m 21 I E = 200 GPa I = 1000(106) mm4
