1. Sketch the welding symbol for the following seam weld on the adjacent incomplete symbim. A. Gas tungsten are weld B.

Post by answerhappygod »

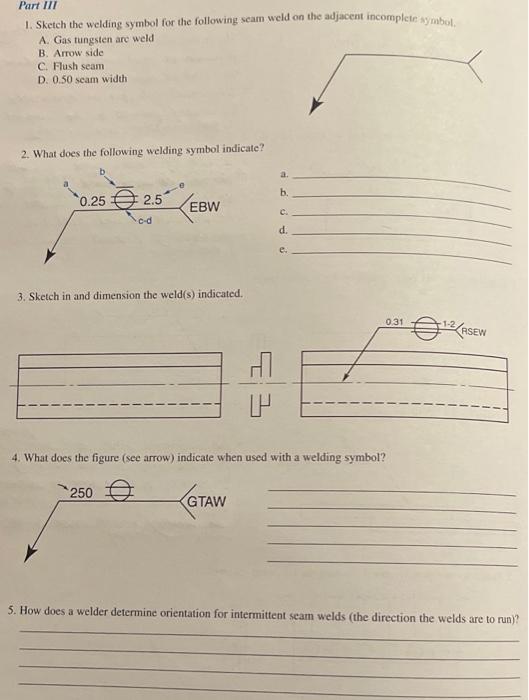

1 Sketch The Welding Symbol For The Following Seam Weld On The Adjacent Incomplete Symbim A Gas Tungsten Are Weld B 1
1 Sketch The Welding Symbol For The Following Seam Weld On The Adjacent Incomplete Symbim A Gas Tungsten Are Weld B 1 (38.73 KiB) Viewed 32 times
1. Sketch the welding symbol for the following seam weld on the adjacent incomplete symbim. A. Gas tungsten are weld B. Arrow side C. Fash sean D. 0.50 scam width 2. What does the following welding symbol indicate? a. b. c. d. e. 3. Sketch in and dimension the weld(s) indicated. 4. What does the figure (see arrow) indicate when used with a welding symbol? 5. How does a welder determine orientation for intermittent seam welds (the direction the welds are to run)?
