A hollow (ID=1.6 cm,OD=2 cm),0.5−m-long, steel (G=77GPA) shaft is attached to a solid (OD=2 cm),0.25−m long, brass ( G=3

Post by answerhappygod »

A Hollow Id 1 6 Cm Od 2 Cm 0 5 M Long Steel G 77gpa Shaft Is Attached To A Solid Od 2 Cm 0 25 M Long Brass G 3 1
A Hollow Id 1 6 Cm Od 2 Cm 0 5 M Long Steel G 77gpa Shaft Is Attached To A Solid Od 2 Cm 0 25 M Long Brass G 3 1 (42.18 KiB) Viewed 35 times

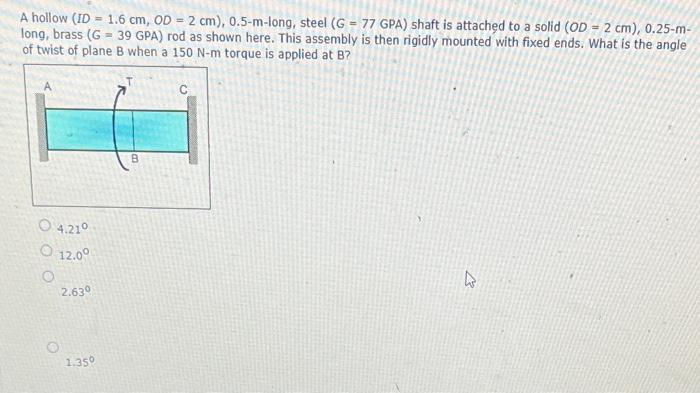

A hollow (ID=1.6 cm,OD=2 cm),0.5−m-long, steel (G=77GPA) shaft is attached to a solid (OD=2 cm),0.25−m long, brass ( G=39GPA ) rod as shown here. This assembly is then rigidly mounted with fixed ends. What is the angle of twist of plane B when a 150 N−m torque is applied at B ? 4.21∘ 12.0∘ 2.630 1.35∘
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
