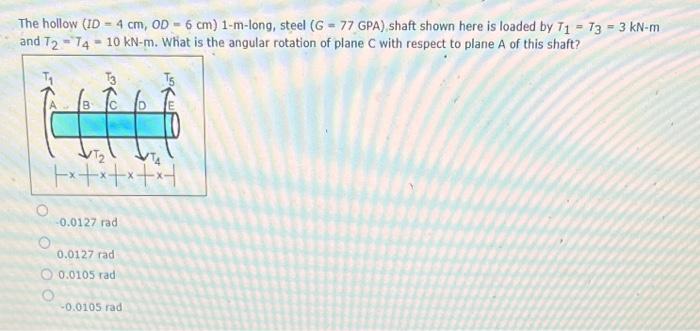

The hollow (ID=4 cm,OD=6 cm)1-m-long, steel (G=77GPA), shaft shown here is loaded by T1=T3=3kN−m and T2=T4=10kN−m. What is the angular rotation of plane C with respect to plane A of this shaft? −0.0127rad 0.0127 rad 0.0105rad −0.0105rad
