3.2 Calculate the strength of the splice or doubler (load carrying capability) and Margin of Safety. The "L" angle is Al

Post by answerhappygod »

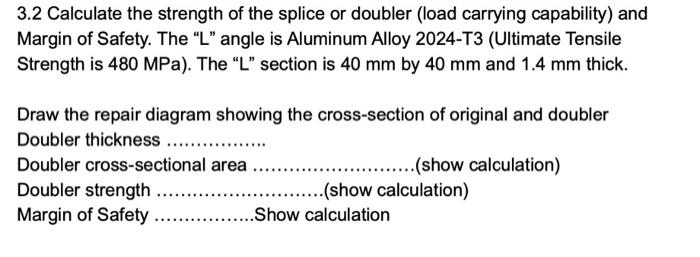

3 2 Calculate The Strength Of The Splice Or Doubler Load Carrying Capability And Margin Of Safety The L Angle Is Al 1
3 2 Calculate The Strength Of The Splice Or Doubler Load Carrying Capability And Margin Of Safety The L Angle Is Al 1 (34.16 KiB) Viewed 32 times
3.2 Calculate the strength of the splice or doubler (load carrying capability) and Margin of Safety. The "L" angle is Aluminum Alloy 2024-T3 (Ulltimate Tensile Strength is 480MPa ). The "L" section is 40 mm by 40 mm and 1.4 mm thick. Draw the repair diagram showing the cross-section of original and doubler Doubler thickness ................ Doubler cross-sectional area (show calculation) Doubler strength (show calculation) Margin of Safety Show calculation
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
