While being supported at points A and B, beam ABC is subjected to a uniformly distributed load of 12kN/m and concentrate

Post by answerhappygod »

While Being Supported At Points A And B Beam Abc Is Subjected To A Uniformly Distributed Load Of 12kn M And Concentrate 1
While Being Supported At Points A And B Beam Abc Is Subjected To A Uniformly Distributed Load Of 12kn M And Concentrate 1 (44.49 KiB) Viewed 25 times

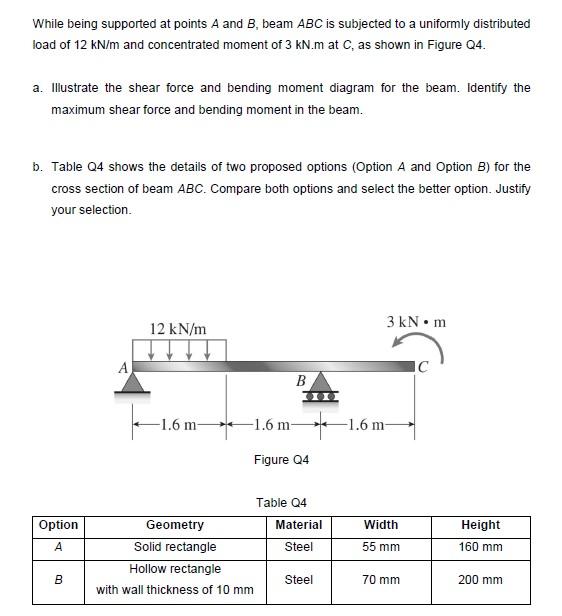

While being supported at points A and B, beam ABC is subjected to a uniformly distributed load of 12kN/m and concentrated moment of 3kN.m at C, as shown in Figure Q4. a. Illustrate the shear force and bending moment diagram for the beam. Identify the maximum shear force and bending moment in the beam. b. Table Q4 shows the details of two proposed options (Option A and Option B ) for the cross section of beam ABC. Compare both options and select the better option. Justify your selection. Table Q4
