A beam is loaded and supported as shown, with F = 21 kN and w =3 kN/m.
The dimensions on the figure are a = 4.3 m, b = 2.5 m, c = 11.3m, and d = 4.4 m.
Draw and label shear and bending moment diagrams for this beam.From your diagrams, enter the following information.
Limits of an interval are defined anywhere there is a change inthe loading or the shear diagram becomes zero. The first intervalis on the left and subsequent intervals are in order moving to theright.

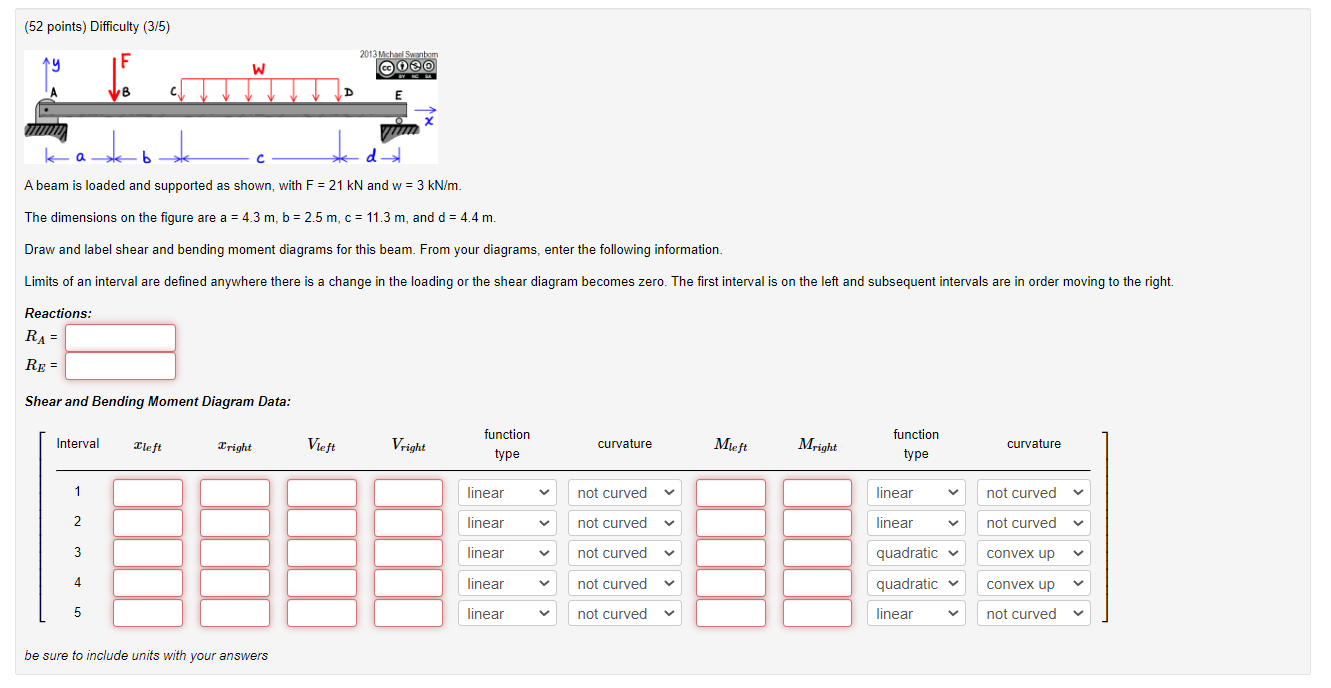

A Beam Is Loaded And Supported As Shown With F 21 Kn And W 3 Kn M The Dimensions On The Figure Are A 4 3 M B 1 (68.19 KiB) Viewed 15 times
(52 points) Difficulty (3/5) A beam is loaded and supported as shown, with F=21kN and w=3kN/m. The dimensions on the figure are a=4.3 m,b=2.5 m,c=11.3 m, and d=4.4 m. Draw and label shear and bending moment diagrams for this beam. From your diagrams, enter the following information. Limits of an interval are defined anywhere there is a change in the loading or the shear diagram becomes zero. The first interval is on the left and subsequent intervals are in order moving to the right. Reactions: RA=RE= Shear and Bending Moment Diagram Data:
