Need to do this in Matlab.
Having trouble creating equation f(u) and plotting this curve asI am getting errors.
Thank you.

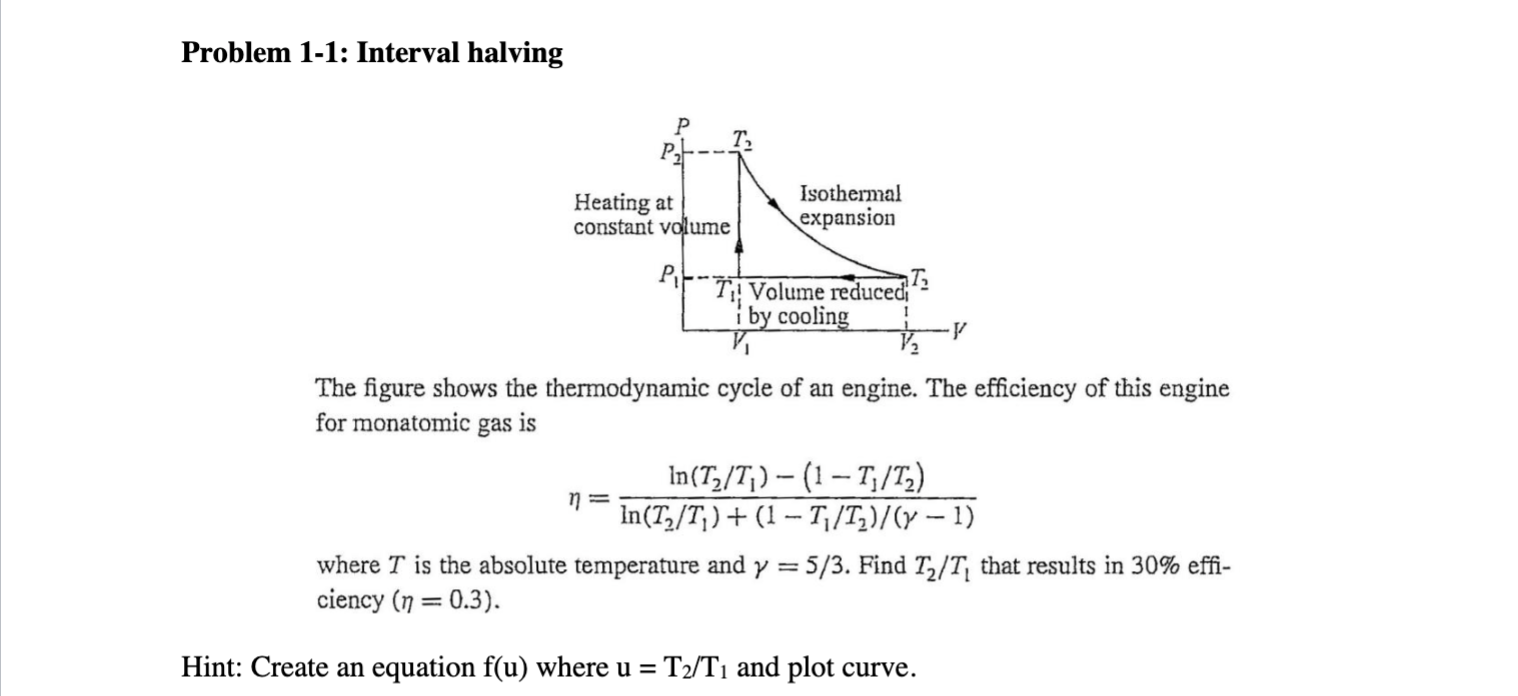

Problem 1-1: Interval halving The figure shows the thermodynamic cycle of an engine. The efficiency of this engine for monatomic gas is η=ln(T2/T1)+(1−T1/T2)/(γ−1)ln(T2/T1)−(1−T1/T2) where T is the absolute temperature and γ=5/3. Find T2/T1 that results in 30% efficiency (η=0.3). Hint: Create an equation f(u) where u=T2/T1 and plot curve.
