Hydraulic actuator BC is used to control the angle of the crane's boom AD as shown. The actuator is extending at a const

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Hydraulic actuator BC is used to control the angle of the crane's boom AD as shown. The actuator is extending at a const

Post by answerhappygod »

Hydraulic Actuator Bc Is Used To Control The Angle Of The Crane S Boom Ad As Shown The Actuator Is Extending At A Const 1
Hydraulic Actuator Bc Is Used To Control The Angle Of The Crane S Boom Ad As Shown The Actuator Is Extending At A Const 1 (46.56 KiB) Viewed 18 times
Determine Vc,rel, W_AD, a_c,rel

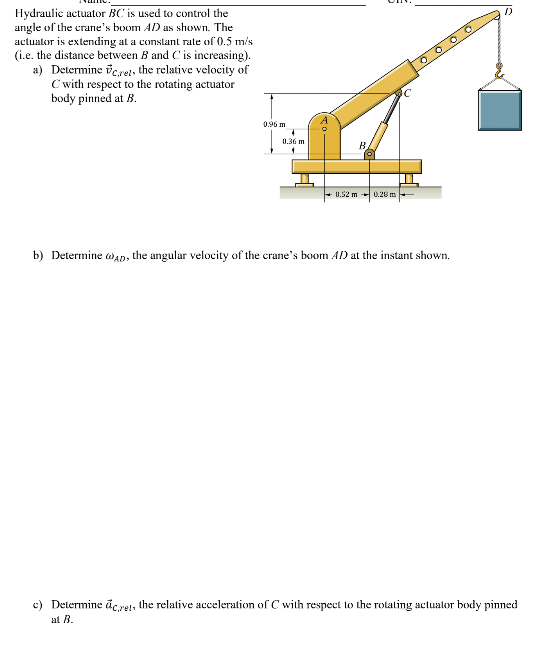

Hydraulic actuator BC is used to control the angle of the crane's boom AD as shown. The actuator is extending at a constant rate of 0.5 m/s (i.e. the distance between B and C is increasing). a) Determine vC,rel​, the relative velocity of C with respect to the rotating actuator body pinned at B. b) Determine ωAD​, the angular velocity of the crane's boom AD at the instant shown. c) Determine aC,rel​, the relative aceeleration of C with respect to the rotating actuator body pinned at B.
