A Obtain The Equivalent Single Block That Represents The Transfer Function T S C S R S B Analyse The Damping Rat 1 (82.93 KiB) Viewed 13 times
please help me this control engineering questions

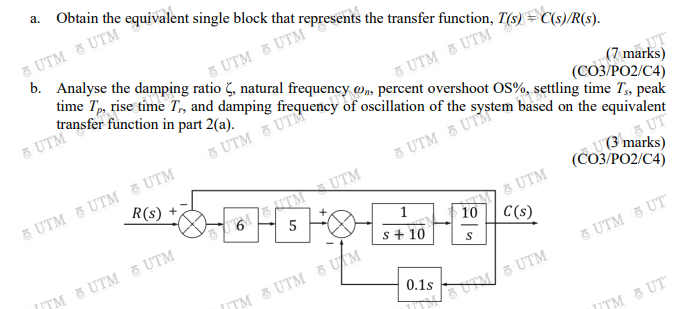

a. Obtain the equivalent single block that represents the transfer function, T(s)=C(s)/R(s). b. Analyse the damping ratio ζ, natural frequency ωn, percent overshoot OS%, settling time T, (CO3/PO2/C4) time Tp, rise time Tr, and damping frequency of oscillation of the system based on the equivalent transfer function in part 2(a).
