Figure Q3 (b)

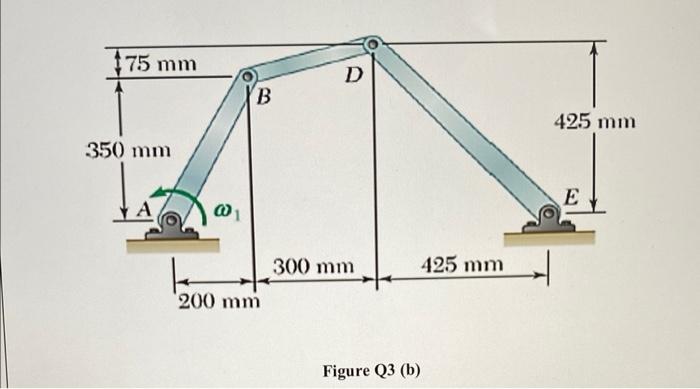

Figure Q3 (b) shows constant angular velocity ωl=20rad/s anticlockwise applied to the system of links AB,BD and DE. At t
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Figure Q3 (b) shows constant angular velocity ωl=20rad/s anticlockwise applied to the system of links AB,BD and DE. At t

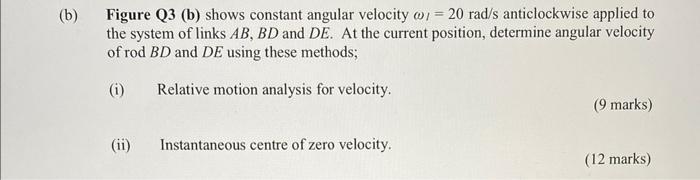

Figure Q3 (b) shows constant angular velocity ωl=20rad/s anticlockwise applied to the system of links AB,BD and DE. At the current position, determine angular velocity of rodBD and DE using these methods; (i) Relative motion analysis for velocity. ( 9 marks) (ii) Instantaneous centre of zero velocity. (12 marks)
Figure Q3 (b)
Figure Q3 (b)
