COMPREHENSIVE PROBLEM BASED LEARNING An Aircraft B737-800 T-Stiffener beam located in the forward cargo hole was found d

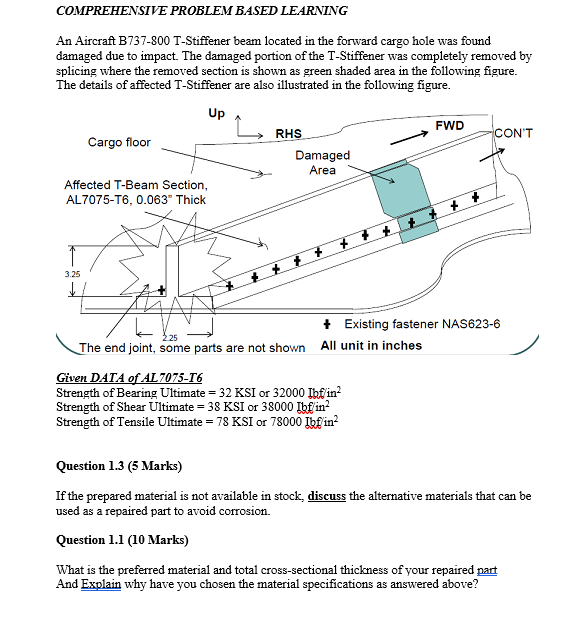

COMPREHENSIVE PROBLEM BASED LEARNING An Aircraft B737-800 T-Stiffener beam located in the forward cargo hole was found damaged due to impact. The damaged portion of the T-Stiffener was completely removed by splicing where the removed section is shown as green shaded area in the following figure. The details of affected T-Stiffener are also illustrated in the following figure. Given DATA of AL7075-T6 Strength of Shear Ultimate =38KSI or 38000Ibfin2 Strength of Tensile Ultimate =78KSI or 78000Ibf′ in 2 Question 1.3 (5 Marks) If the prepared material is not available in stock, discuss the alternative materials that can be used as a repaired part to avoid corrosion. Question 1.1 (10 Marks) What is the preferred material and total cross-sectional thickness of your repaired nart And Explain why have you chosen the material specifications as answered above?
