A beam is loaded and supported as shown, with F1​=1890lb,F2​=2240lb, and w =840lb/ft. The dimensions on the figure are a

Post by answerhappygod »

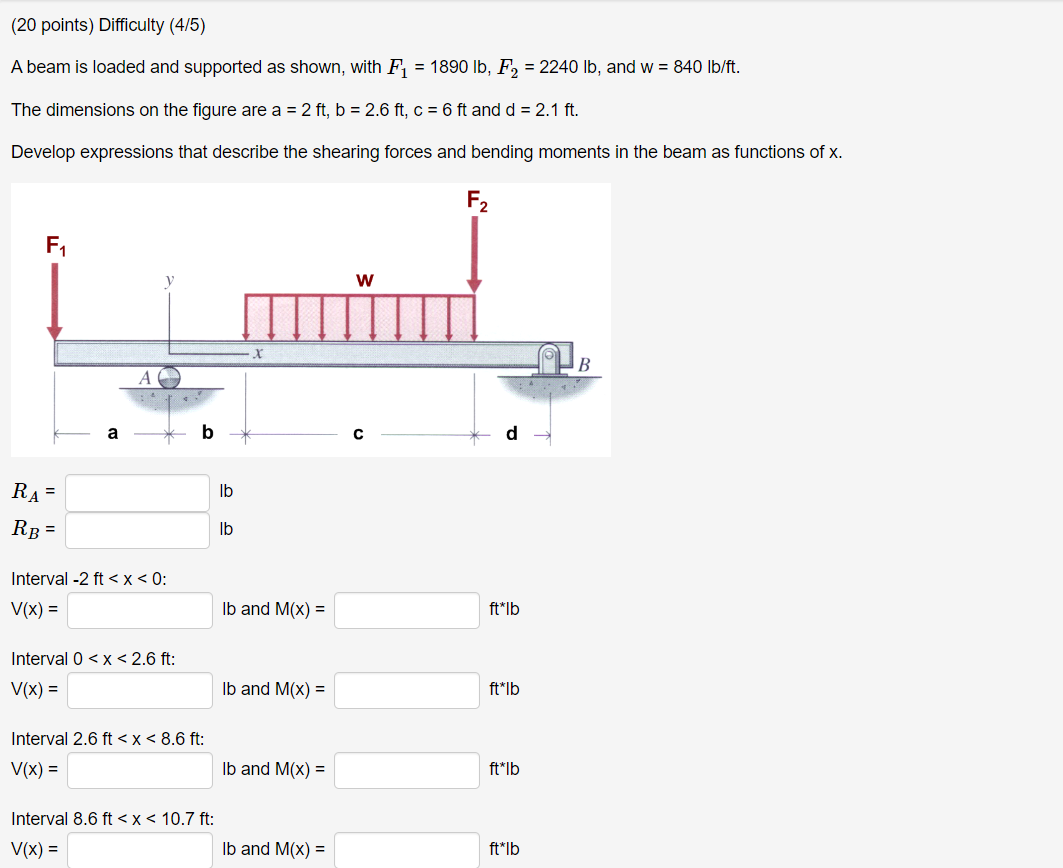

A Beam Is Loaded And Supported As Shown With F1 1890lb F2 2240lb And W 840lb Ft The Dimensions On The Figure Are A 1
A Beam Is Loaded And Supported As Shown With F1 1890lb F2 2240lb And W 840lb Ft The Dimensions On The Figure Are A 1 (152.43 KiB) Viewed 31 times
A beam is loaded and supported as shown, with F1​=1890lb,F2​=2240lb, and w =840lb/ft. The dimensions on the figure are a=2ft,b=2.6ft,c=6ft and d=2.1ft. Develop expressions that describe the shearing forces and bending moments in the beam as functions of x.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
