A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u=2.6 mm an
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u=2.6 mm an

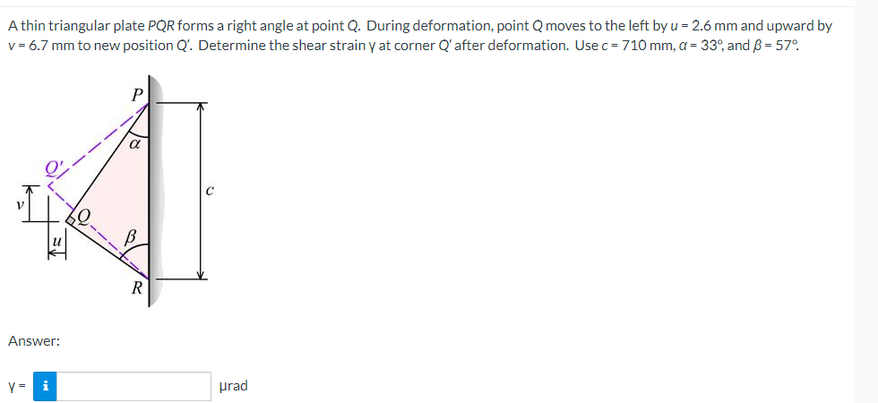

A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u=2.6 mm and upward by v=6.7 mm to new position Q′. Determine the shear strain γ at corner Q′ after deformation. Use c=710 mm,α=33∘, and β=57∘. Answer: μrad
