3. Solve Problem 7.32 - you must use Mohr's circle in your solution. To simplify your work, a figure with gridlines and
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. Solve Problem 7.32 - you must use Mohr's circle in your solution. To simplify your work, a figure with gridlines and

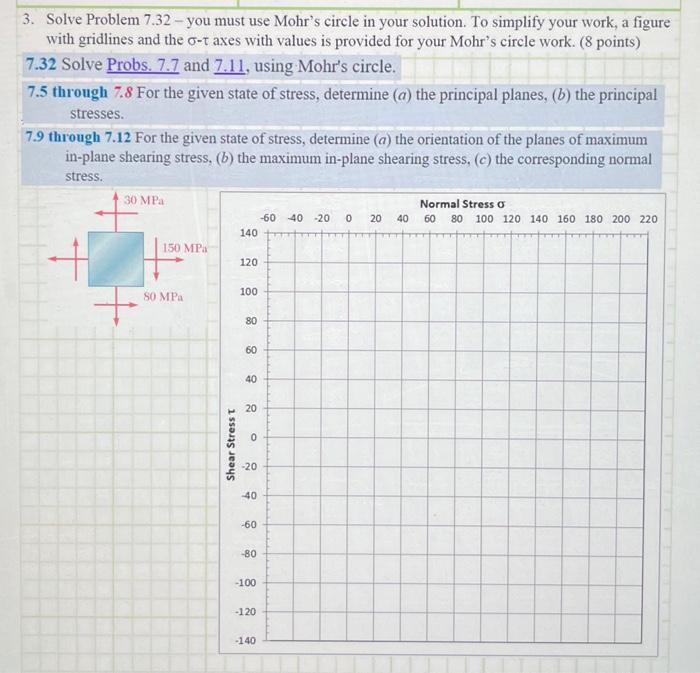

3. Solve Problem 7.32 - you must use Mohr's circle in your solution. To simplify your work, a figure with gridlines and the σ−τ axes with values is provided for your Mohr's circle work. ( 8 points) 7.32 Solve Probs. 7.7 and 7.11, using Mohr's circle. 7.5 through 7.8 For the given state of stress, determine (a) the principal planes, (b) the principal stresses. 7.9 through 7.12 For the given state of stress, determine (a) the orientation of the planes of maximum in-plane shearing stress, (b) the maximum in-plane shearing stress, (c) the corresponding normal stress.
