8.175 A 125-mm-diameter pipeline conveying water at 10∘C contains 50 m of straight galvanized pipe, 5 fully open gate va

Post by answerhappygod »

8 175 A 125 Mm Diameter Pipeline Conveying Water At 10 C Contains 50 M Of Straight Galvanized Pipe 5 Fully Open Gate Va 1
8 175 A 125 Mm Diameter Pipeline Conveying Water At 10 C Contains 50 M Of Straight Galvanized Pipe 5 Fully Open Gate Va 1 (35.01 KiB) Viewed 38 times

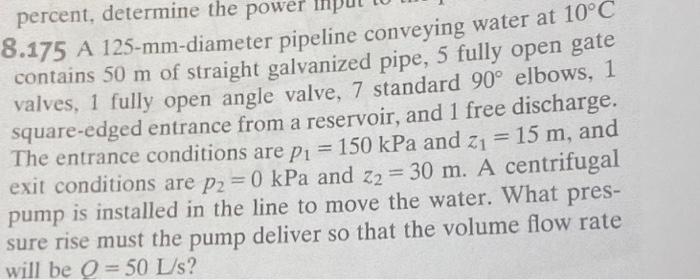

8.175 A 125-mm-diameter pipeline conveying water at 10∘C contains 50 m of straight galvanized pipe, 5 fully open gate valves, 1 fully open angle valve, 7 standard 90∘ elbows, 1 square-edged entrance from a reservoir, and 1 free discharge. The entrance conditions are p1​=150kPa and z1​=15 m, and exit conditions are p2​=0kPa and z2​=30 m. A centrifugal pump is installed in the line to move the water. What pressure rise must the pump deliver so that the volume flow rate will be O=50 L/s ?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
