control engineering
control engineering

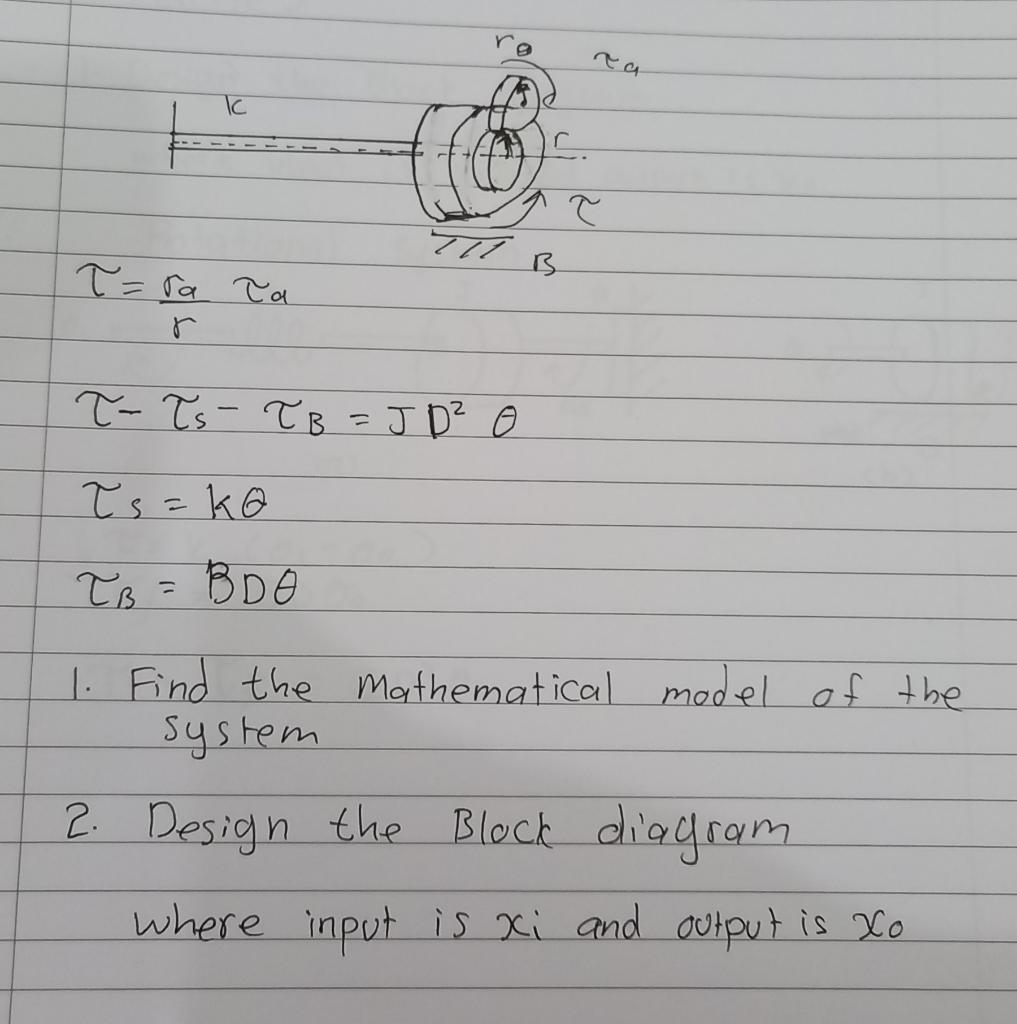

τ=rvaτaτ−τs−τB=JD2θτs=kθτB=BDθ 1. Find the mathematical model of the system 2. Design the Block diagram Where input is xi and output is x0
τ=rvaτaτ−τs−τB=JD2θτs=kθτB=BDθ 1. Find the mathematical model of the system 2. Design the Block diagram Where input is xi and output is x0
