A crate is hung by three ropes attached to a steel ring at A such that the top surface is parallel to the xy plane. Poin

Post by answerhappygod »

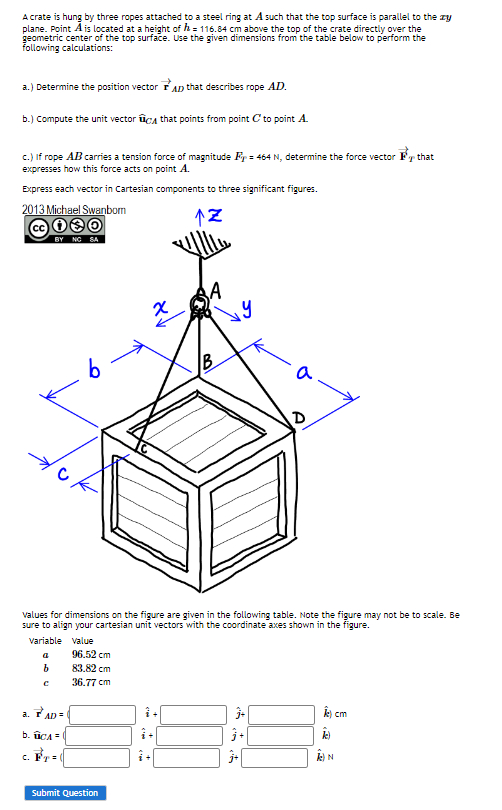

A Crate Is Hung By Three Ropes Attached To A Steel Ring At A Such That The Top Surface Is Parallel To The Xy Plane Poin 1
A Crate Is Hung By Three Ropes Attached To A Steel Ring At A Such That The Top Surface Is Parallel To The Xy Plane Poin 1 (67.19 KiB) Viewed 40 times
A crate is hung by three ropes attached to a steel ring at A such that the top surface is parallel to the xy plane. Point A is located at a height of h=116.84 cm above the top of the crate directly over the geometric center of the top surface. Use the given dimensions from the table below to perform the following calculations: a.) Determine the position vector rAD that describes rope AD. b.) Compute the unit vector uCA​ that points from point C to point A. c.) If rope AB carries a tension force of magnitude FT​=464 N, determine the force vector F That expresses how this force acts on point A. Express each vector in Cartesian components to three significant figures. values for dimensions on the figure are given in the following table. Note the figure may not be to scale. Be sure to align your cartesian unit vectors with the coordinate axes shown in the figure.
