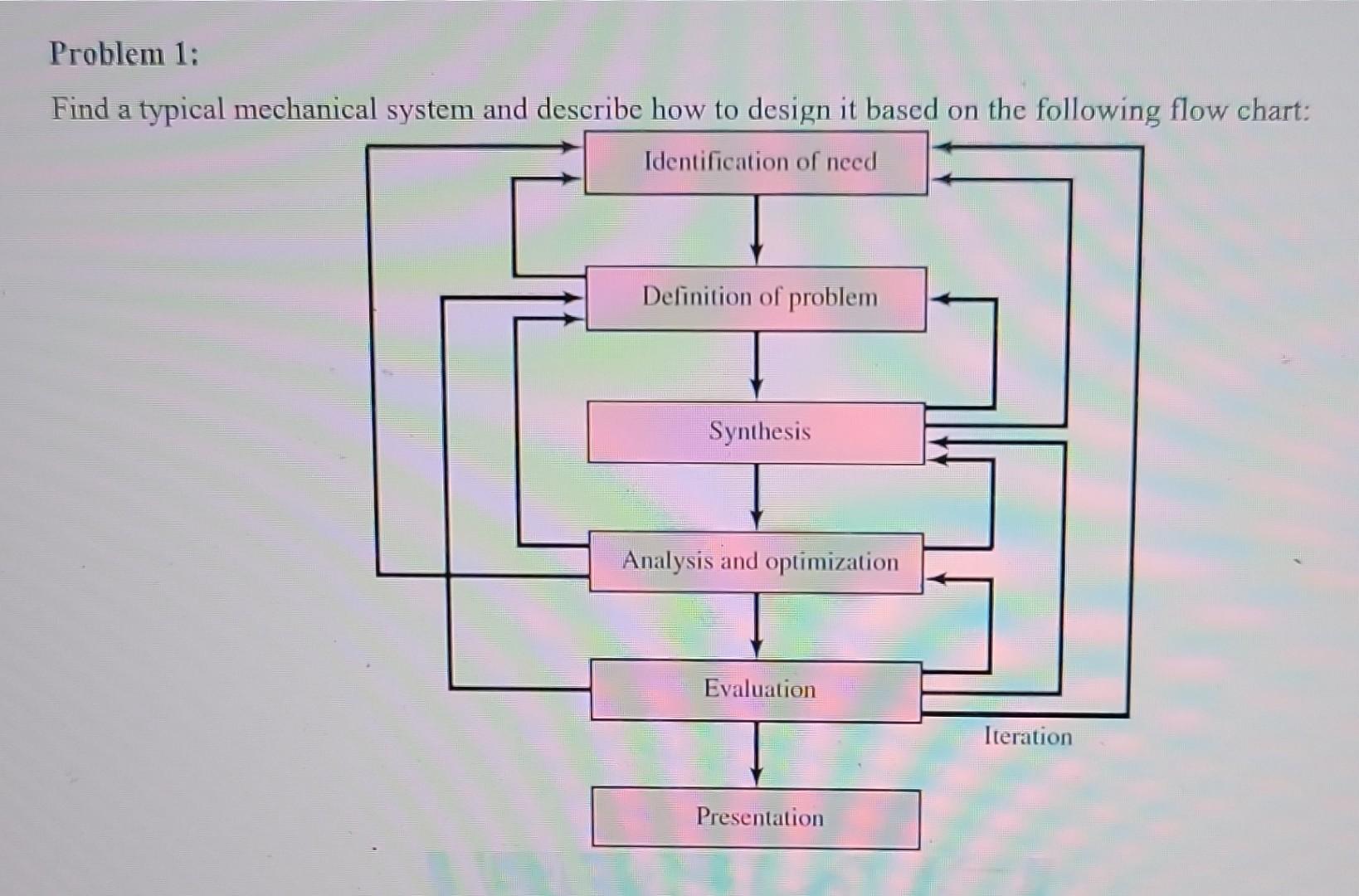

Find a typical mechanioal evetom and deserihe haux to dacian it hacad an the follnurina flaw chart:

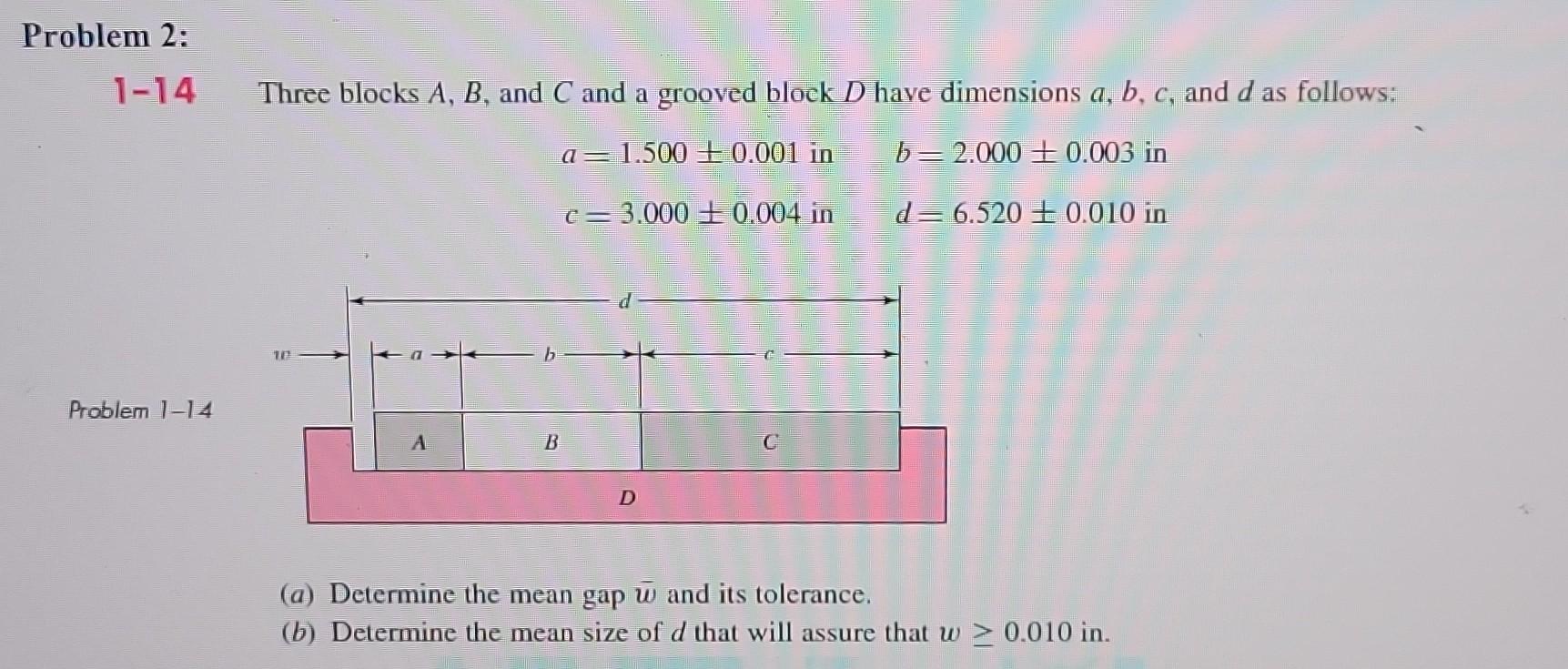

1-14 Three blocks A,B, and C and a grooved block D have dimensions a,b,c, and d as follows: a=1.500±0.001 in c=3.000±0.004 in b=2.000±0.003 in d=6.520±0.010 in Problem 1-14 (a) Determine the mean gap wˉ and its tolerance. (b) Determine the mean size of d that will assure that w≥0.010in.
