Example 21.3. Four masses A,B,C and D as shown below are to be completely balanced. The planes containing masses B and C

Post by answerhappygod »

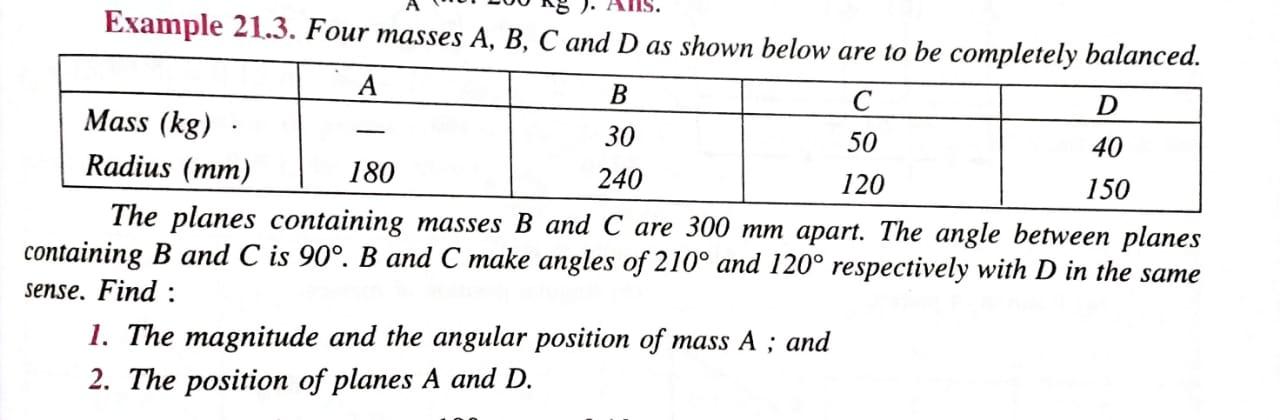

Example 21 3 Four Masses A B C And D As Shown Below Are To Be Completely Balanced The Planes Containing Masses B And C 1
Example 21 3 Four Masses A B C And D As Shown Below Are To Be Completely Balanced The Planes Containing Masses B And C 1 (61.88 KiB) Viewed 72 times
Example 21.3. Four masses A,B,C and D as shown below are to be completely balanced. The planes containing masses B and C are 300 mm apart. The angle between planes containing B and C is 90∘.B and C make angles of 210∘ and 120∘ respectively with D in the same sense. Find : 1. The magnitude and the angular position of mass A; and 2. The position of planes A and D.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
