The design of the gear-and-shaft system shown requires that steel shafts of the same diameter be used for both AB and CD

Post by answerhappygod »

The Design Of The Gear And Shaft System Shown Requires That Steel Shafts Of The Same Diameter Be Used For Both Ab And Cd 1
The Design Of The Gear And Shaft System Shown Requires That Steel Shafts Of The Same Diameter Be Used For Both Ab And Cd 1 (198 KiB) Viewed 38 times

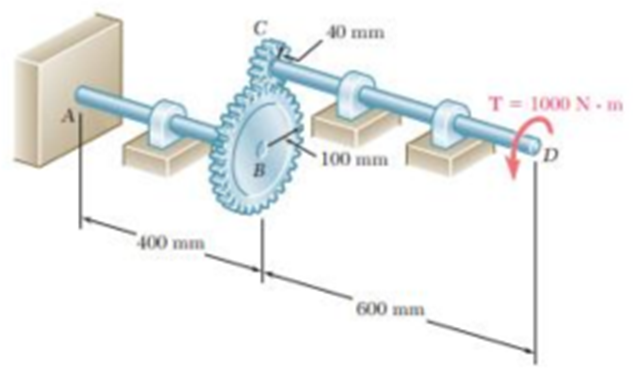

The design of the gear-and-shaft system shown requires thatsteel shafts of the same diameter be used for both AB and CD. It isfurther required that max 60MPa, and that the angle πœ™π· through which end D of shaft CD rotatesnot exceed .Knowing that G = 77.2 GPa, determine the required diameter ofthe shafts.
a. Torsion 𝑇𝐴𝐡 in AB and 𝑇𝐢𝐷 in CD?
b. Design the shaft diameter based on the max
c. Design the shaft diameter based on rotation angleπœ™D
d. Required diameter of shaft?
