Rigid cylinder with smooth surface is supported by vertical wall A and angular support B. Define the support B reaction,

Post by answerhappygod »

Rigid Cylinder With Smooth Surface Is Supported By Vertical Wall A And Angular Support B Define The Support B Reaction 1
Rigid Cylinder With Smooth Surface Is Supported By Vertical Wall A And Angular Support B Define The Support B Reaction 1 (35.04 KiB) Viewed 30 times

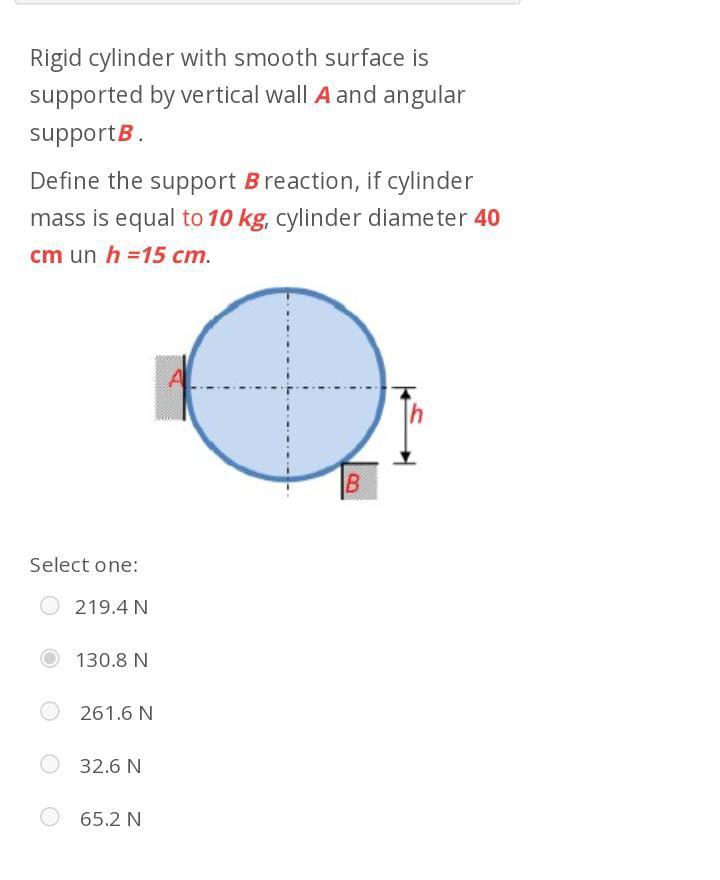

Rigid cylinder with smooth surface is supported by vertical wall A and angular support B. Define the support B reaction, if cylinder mass is equal to 10 kg, cylinder diameter 40 cm un h=15 cm. Select one: 219.4 N 130.8 N 261.6 N 32.6 N 65.2 N
