Problem 4: For the position of the linkage shown, θ2=−30∘,θ1=45∘ and θ4=100∗,ω2=10 rad/s. Al dimensions are in inche

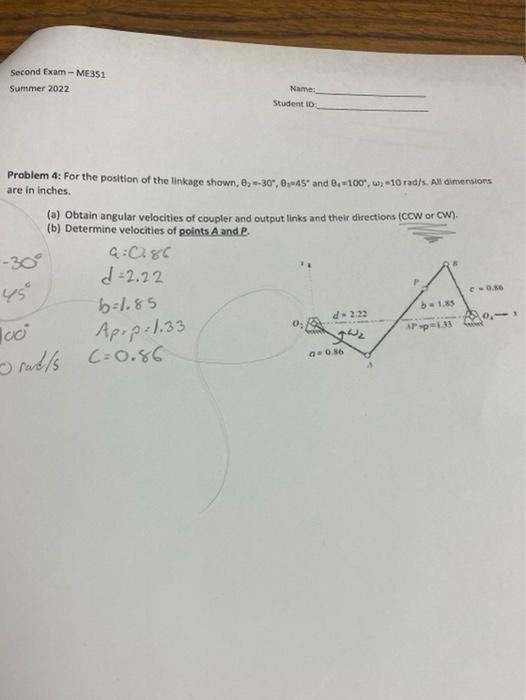

Problem 4: For the position of the linkage shown, θ2=−30∘,θ1=45∘ and θ4=100∗,ω2=10 rad/s. Al dimensions are in inches. (a) Obtain angular velocities of coupler and output links and their directions (CCW or CW). (b) Determine velocities of points A and P.
