Begin Tabular Lc Hline Practice 1 Date 14 November 2021 Total Marks 43 Duration 80 Minutes Hline End 1 (23.49 KiB) Viewed 41 times
Show All your working.
(a) Derive equations for S.F. -V (x) and B.M. -M(x), for span B-C
(b) Calculate the slope of the beam at E if EI = 40MNm2
(c) Determine the maximum deflection of beam A-E.

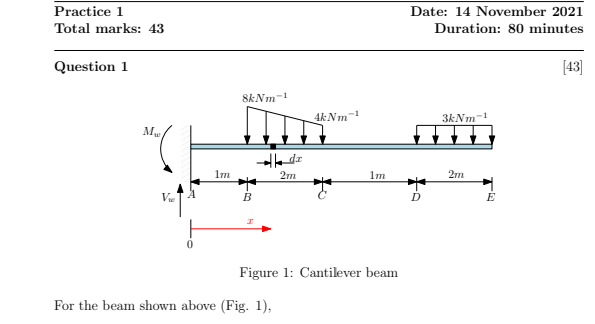

\begin{tabular}{lc} \hline Practice 1 & Date: 14 November 2021 \\ Total marks: 43 & Duration: 80 minutes \\ \hline \end{tabular} Question 1 [43] Figure 1: Cantilever beam For the beam shown above (Fig. 1),
