A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u=2.4 mm an

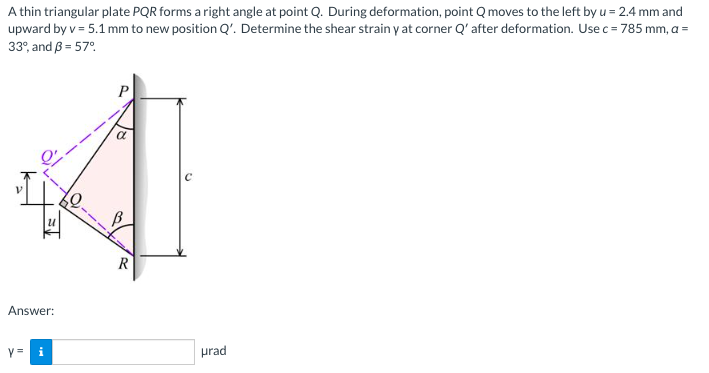

A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u=2.4 mm and upward by v=5.1 mm to new position Q′. Determine the shear strain y at corner Q′ after deformation. Use c=785 mm,a= 33∘, and β=57∘. Answer: γ=
