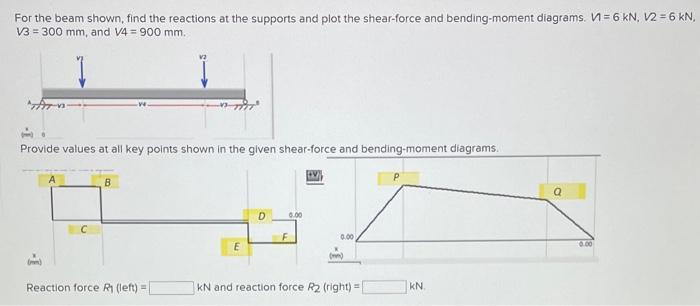

For the beam shown, find the reactions at the supports and plot the shear-force and bending-moment diagrams. V=6kN,V2=6kN, 3=300 mm, and V4=900 mm. Provide values at all key points shown in the glven shear-force and bending-moment diagrams. Reaction force R1( left) = kN and reaction force R2 (right) = kN

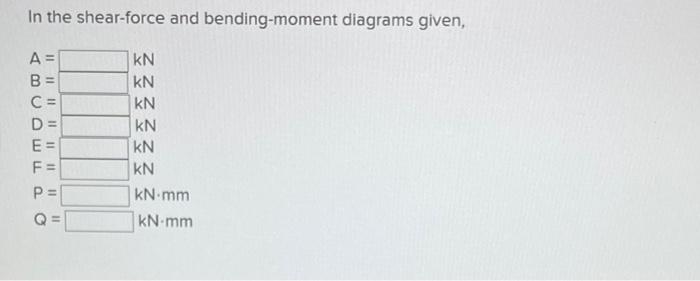

In the shear-force and bending-moment diagrams given,
