For the beam shown, find the reactions at the supports and plot the shear-force and bending-moment diagrams. V=6kN,V2=6k

Post by answerhappygod »

For The Beam Shown Find The Reactions At The Supports And Plot The Shear Force And Bending Moment Diagrams V 6kn V2 6k 1
For The Beam Shown Find The Reactions At The Supports And Plot The Shear Force And Bending Moment Diagrams V 6kn V2 6k 1 (20.62 KiB) Viewed 46 times

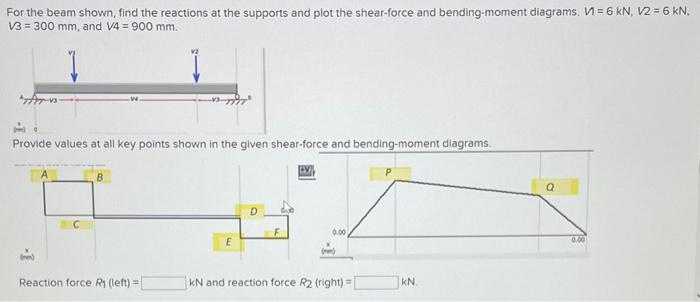

For the beam shown, find the reactions at the supports and plot the shear-force and bending-moment diagrams. V=6kN,V2=6kN, 3​=300 mm, and v/4=900 mm. Provide values at all key points shown in the given shear-force and bending-moment diagrams. Reaction force R R (left) = kN and reaction force R2​ (fight) =
