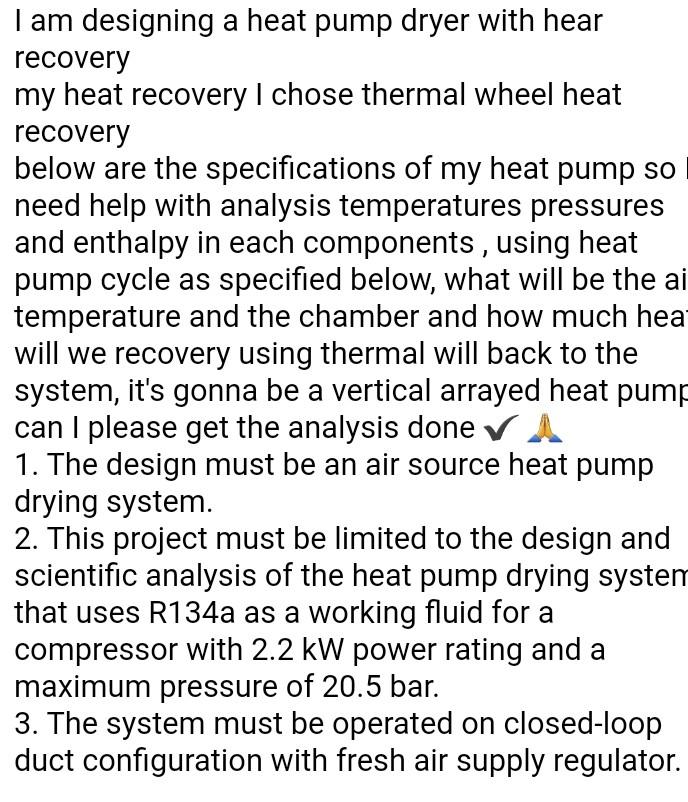

- I Am Designing A Heat Pump Dryer With Hear Recovery My Heat Recovery I Chose Thermal Wheel Heat Recovery Below Are The S 1 (127.74 KiB) Viewed 47 times
1. The design must be an air source heat pump drying system.
2. This project must be limited to the design and scientific analysis of the heat pump drying system that uses R134a as a working fluid for a compressor with 2.2 kW power rating and a maximum pressure of 20.5 bar.
3. The system must be operated on closed-loop duct configuration with fresh air supply regulator.
I am designing a heat pump dryer with hear recovery my heat recovery I chose thermal wheel heat recovery below are the specifications of my heat pump so need help with analysis temperatures pressures and enthalpy in each components, using heat pump cycle as specified below, what will be the ai temperature and the chamber and how much hea will we recovery using thermal will back to the system, it's gonna be a vertical arrayed heat pumn can I please get the analysis done A 1. The design must be an air source heat pump drying system. 2. This project must be limited to the design and scientific analysis of the heat pump drying systen that uses R134a as a working fluid for a compressor with 2.2 kW power rating and a maximum pressure of 20.5bar. 3. The system must be operated on closed-loop duct configuration with fresh air supply regulator.
