A piston-cylinder assembly contains 2lb of water, initially at 100lbf/in.2 and 450∘F. The water undergoes two processes

Post by answerhappygod »

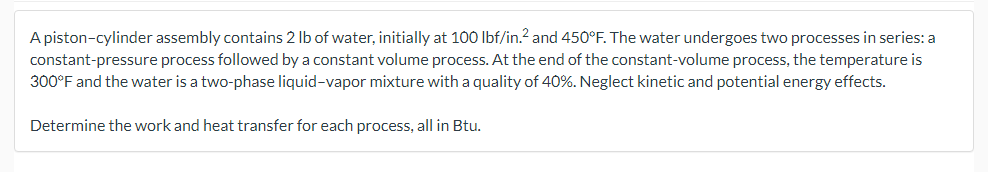

A Piston Cylinder Assembly Contains 2lb Of Water Initially At 100lbf In 2 And 450 F The Water Undergoes Two Processes 1
A Piston Cylinder Assembly Contains 2lb Of Water Initially At 100lbf In 2 And 450 F The Water Undergoes Two Processes 1 (13.33 KiB) Viewed 47 times
A piston-cylinder assembly contains 2lb of water, initially at 100lbf/in.2 and 450∘F. The water undergoes two processes in series: a constant-pressure process followed by a constant volume process. At the end of the constant-volume process, the temperature is 300∘F and the water is a two-phase liquid-vapor mixture with a quality of 40%. Neglect kinetic and potential energy effects. Determine the work and heat transfer for each process, all in Btu.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
